UHF USB desktop reader and writer

Products Mode: UHF-05
UHF USB desktop reader and writer

UHF USB desktop reader and writer


*UHF-05 is a high performance UHF RFID desktop Reader.

*It supports fast tag read/write operation with high identification rate.

*It can be widely applied in many RFID application systems such as logistics, access control, attendance system,

anti-counterfeit and industrial production process control system.


Features:


*Support ISO18000-6C(EPC C1G2) , ISO18000-6B protocol tag

*860~868MHz, 902~928MHz frequency band(frequency customization optional)

*FHSS or Fix Frequency transmission

*RF output power up to 13dbm(adjustable)

*No external power source needed

*Built-in antenna with effect distance up to 20cm

*2dBi Circular polarization antenna

*Support USB2.0 interface with VSP(Virtual Serial Port) or HID mode

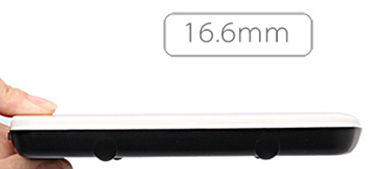

*Slim outline

* Provide SDK and demo software to facilitate further development

*Effective distance depends on protocol, tag and environment



Weight: 1.5kg

Size:      15X10X4 cm
