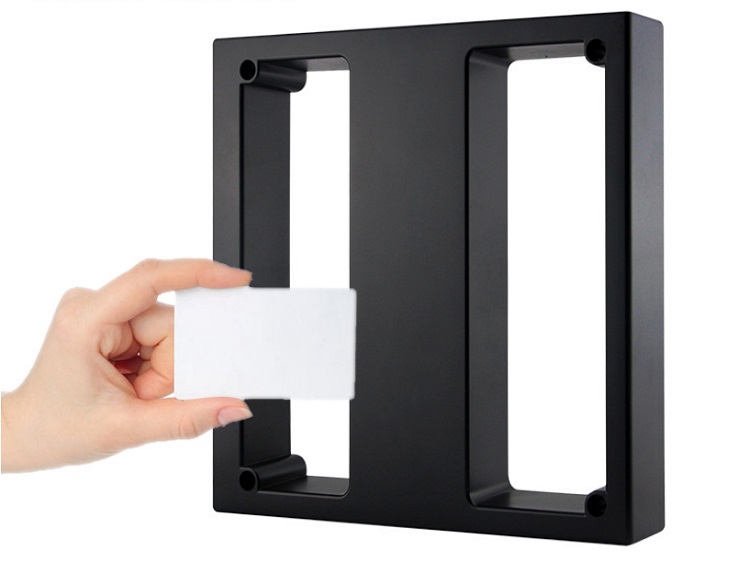

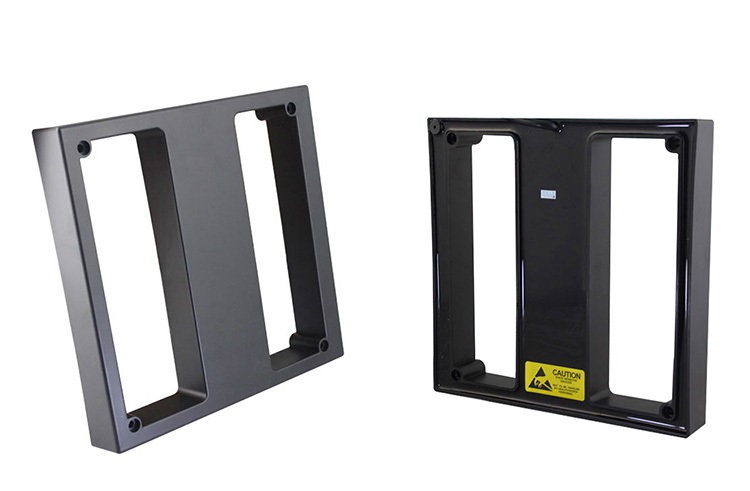

​EM long range rfid reader range of rfid

Products Mode: 08Y
​EM long distance card reader for car parking system

· Data Output Format: Wiegand 26-Bit; Mainly used for parking, elevator, logistics industry,etc

· Card Type: EM-ID Card (Can't support encrypted cards, such as HID, Indala,Cobra, APCiK ,Paradox,Radio,Honeywell,etc)

· 30cm-100cm proximity range dependence on cards quality

· The Reading range is a complex parameter,So called "Middle Range",only means the unit works with the special long range card,that is a 2mm thickness credit size card.

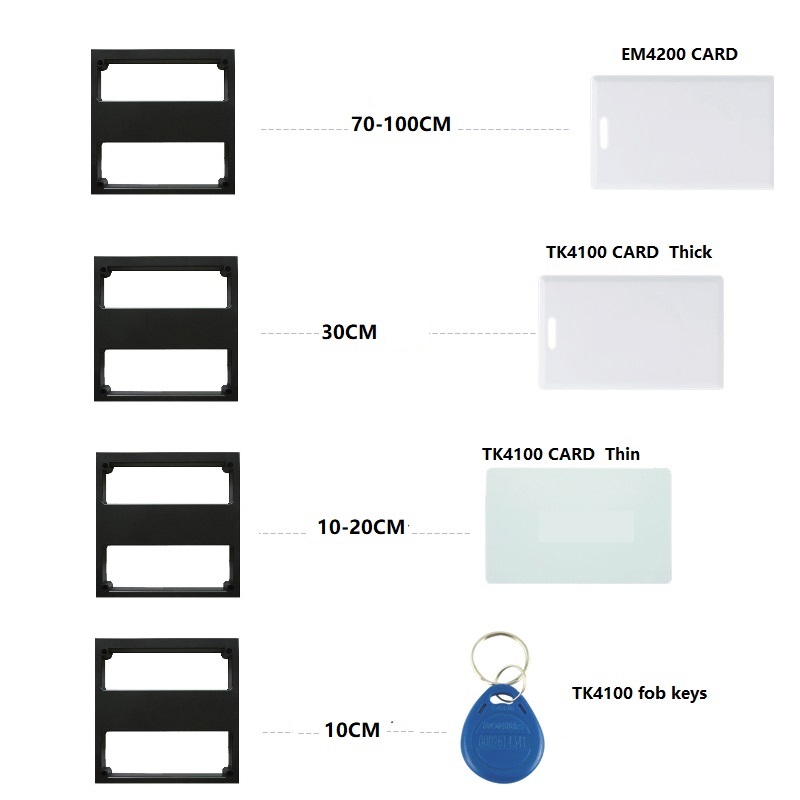

· Normally, the unit can also work with normal EM cards,normal 2mm/0.08" thickness card can reach 60cm/23.6" range, 0.8mm/0.03" card can reach 40cm/15.7" range.



Specification:
Decode time: <0.2s
Communication: Wiegand 26
Card type: EM card,EM compatible card, EM4100/4102 (Can't support some encrypted cards,such as HID, Indala,Cobra, APCiK ,Paradox,Radio,Honeywell,etc)
Frequency: 125kHz
Induction Distance: Common Card up to 30-40cm(11.8"-15.7") / Long range proximity card up to 80-100cm(31.5"-39.4")
Power supply: DC 12V
Data transfer range: max.80mA
Current: 200mA
Working Temperature: 0~70℃ / 32℉~158℉
Working Humidity: Less than 80%
Dimension (LxWxH): 230x230x35mm / 9.1"x9.1"x1.4"
Material: Plastic casing & epoxy saturated

Package:
1 x 125Khz 1m Range Proximity Waterproof Reader

Weigh: 1.8 kilograms

Size:

Notification:
The Reading range is a complex parameter,So called "1M range",only means the unit works with the special long range card,that is a 2mm thickness credit size card.Normally, the unit can also work with normal EM cards,normal 2mm/0.08in thickness card can reach 60cm/23.6in range, 0.8mm/0.03in card can reach 40cm/15.7in range.
Can't work alone,need work with access control panel.
