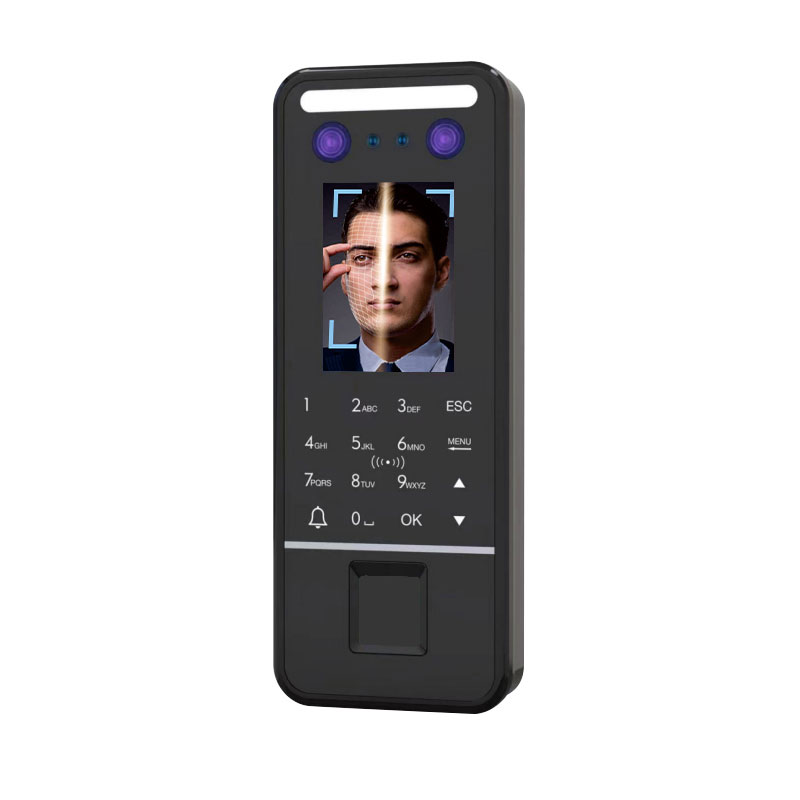

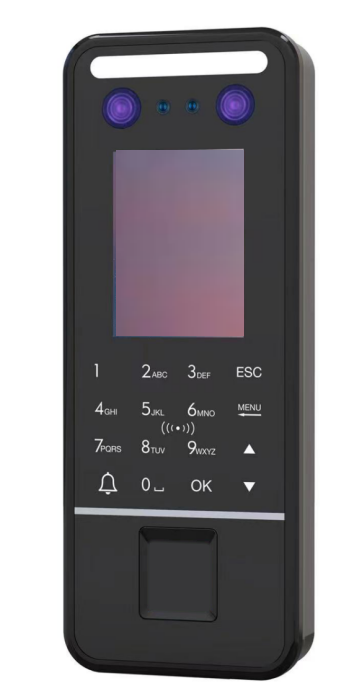

2.4-inch Fingerprint and Facial Recognition Access Control

Products Mode: MR370C

1. Completely independent access control, can directly implement user passwords, card ,Face,fingerprint management and other functions

2. Fingerprint keyboard input, support card, card plus password,face to open the door

3. Fingerprint&ID standalone access control, using finger V10.0 algorithm, low false positives;

4. Infared fingerprint reader, without sunlight affected;

5. Simple access control function, unlock, go out switch;

6. Supports a password and fingerprint to open the door, fingerprint capacity up to 1500pcs ;

7. No Network-based access control, do not keep records;

8. External wired doorbell, comes doorbell button.


Stand alone

With software

Model

MR370C

MD620TC-PZ

CPU

FC100S

ARM Cortex-A7 1.2GHZ

NPU

-

0.5Tops

Operating System

RTOS

LINUX

LCD Display

2.4" TFT color screen 320x240 pixel

2.4" TFT color screen 320x240 pixel

RAM/ROM

32MB/64MB

128MB/256MB

Camera

-

1MP Binocular Camera

User Capacity

500

1500

Face Capacity

500

1500

Palm Vein Capacity(Optional)

-

500

Fingerprint Capacity

1,500

5,000

Card Capacity

500

1,500

Password Capacity

500

1,500

Logs Capacity

200,000

200,000

Identification Speed

0.3s

0.3s

Identification Method

Face / Fingerprint / Card /PIN

Face / Palm Vein / Card / PIN

Identification Distance

1.3M

0.5  2M

Feature

-

Live / Mask detection

Attendance Management

USB 2.0, USB disk

SSR/Software

Access Control

NC/NO,

TimeZone, Anti-pass Back, NC/NO,

Access Control Alarm

Tamper Alert, Illegal Open Alarm, Sensor Alarm

Tamper Alert, Illegal Open Alarm, Sensor Alarm

Access Control Interface

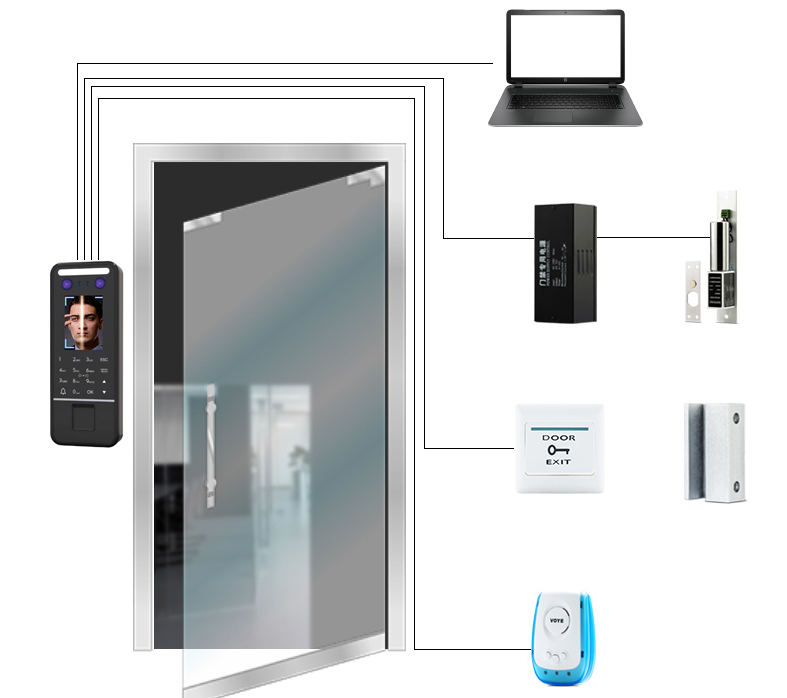

WG26/34 Output, Door Sensor, Electric Lock, Exit Button, Door Bell

WG26/34 Input&Output, Door Sensor, Electric Lock, Exit Button, Door Bell, RS485

Communication

U disk

U disk, TCP/IP

Language

English (Others Customization)

English (Others Customization)

Power Supply

DC 12V/2A

DC 12V/2A

IP Rating

-

-

Operating Environment

Indoor  / -20 -60

Indoor  / -20 -60

Dimensions (mm)

ABS 188×73×24mm

ABS 188×73×24mm
