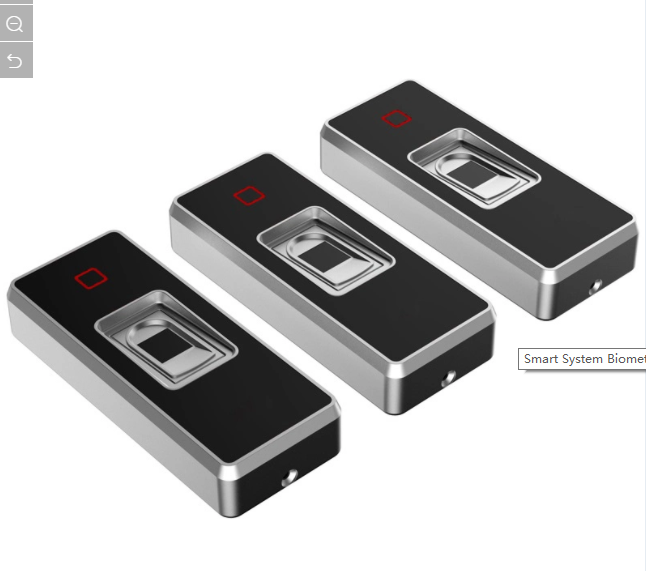

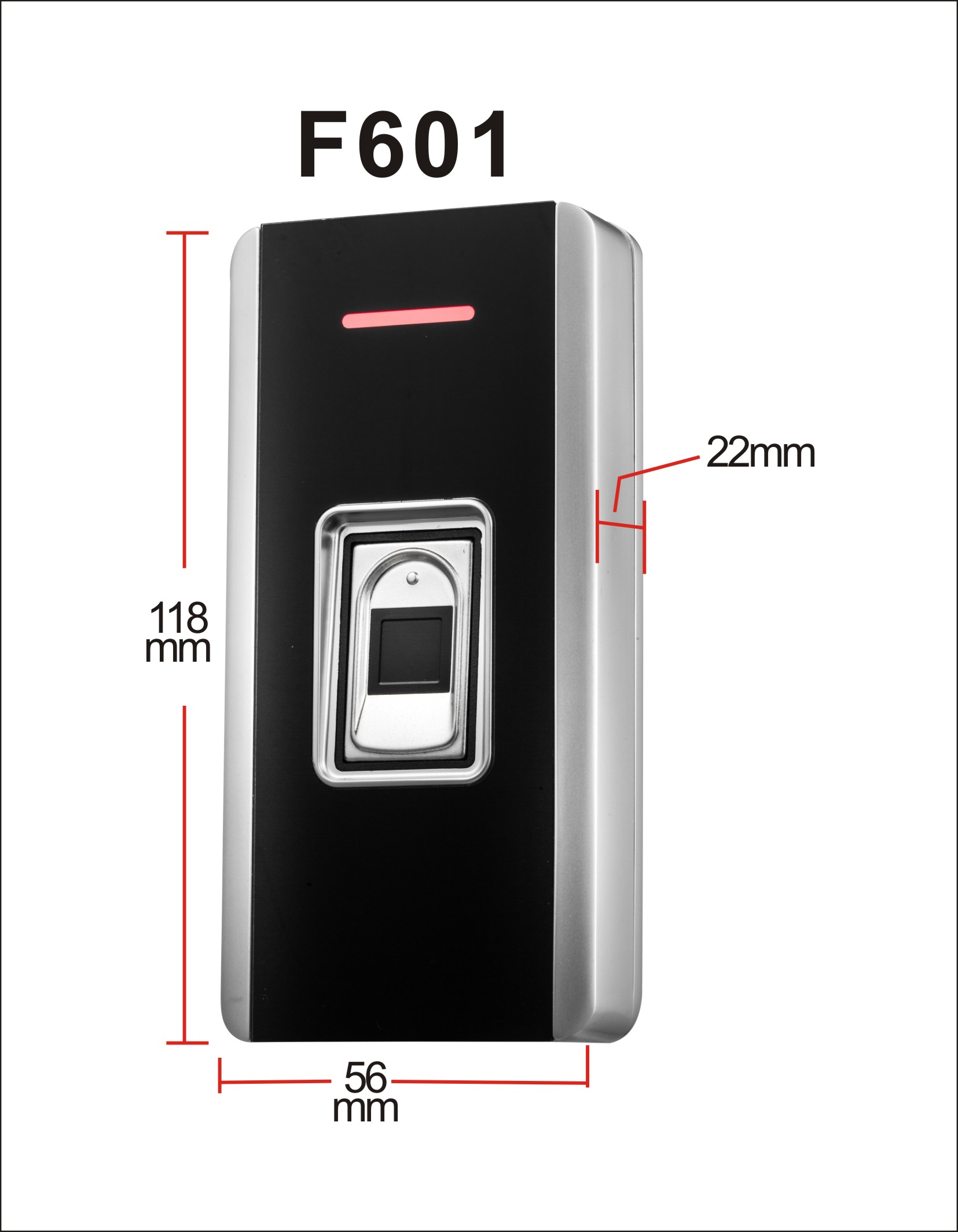

F601 IP68 Metal Fingerprint And RFID Access Control System

Products Mode: F601

Introduction



The series of product is a new generation of multi-functional standalone access control. It adopts new ARM core 32-bit microprocessor design, which is powerful, stable and reliable. It contains reader mode and standalone access control mode etc.. It’s widely applied to different occasions, such as office, residential communities, villa etc..



Features



Read 125KHz EM Card

Read 13.56MHz Mifare card

Operate by infrared remote

Contain reader mode, the transmission format could be adjusted by users.

Support multi access ways: Card+Fingerprint, multi cards or multi fingerprints

Suport admin card/admin fingerprint

10,000 card users and 600 fingerprint users

Relay NO/NC/COM output



Technical Specifications

Operating Voltage: DC 12-24V

Standby Current: ≤ 35mA

Operating Current: ≤100mA

Operating Temperature: -20℃~60℃

Operating Humidity: 0%~95%

Electric lock signal relay contact current≤1A

Alarm signal MOS tube output current: ≤1A

Unlocking time: 0~300s adjustable
