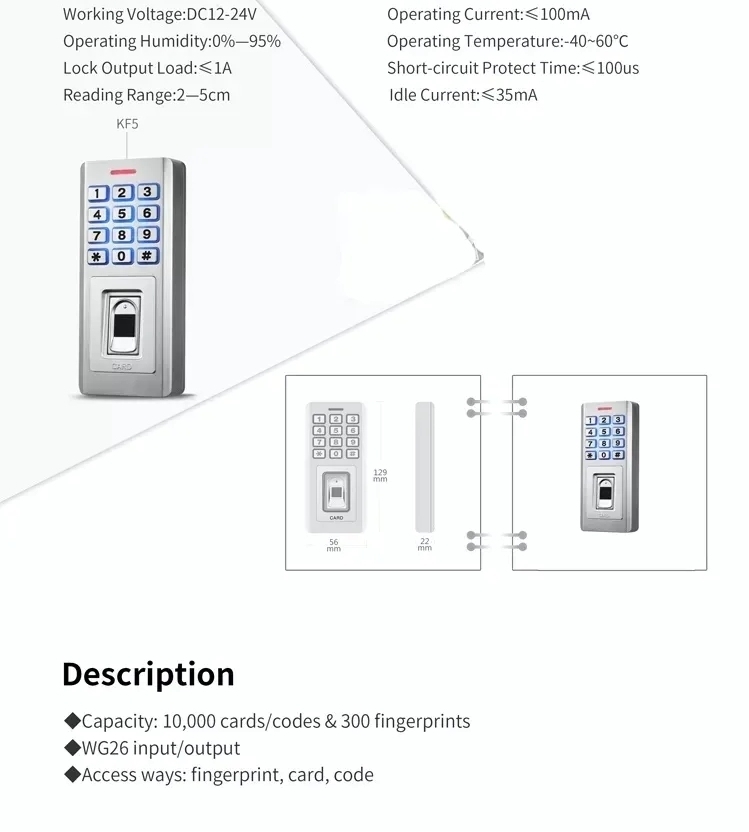

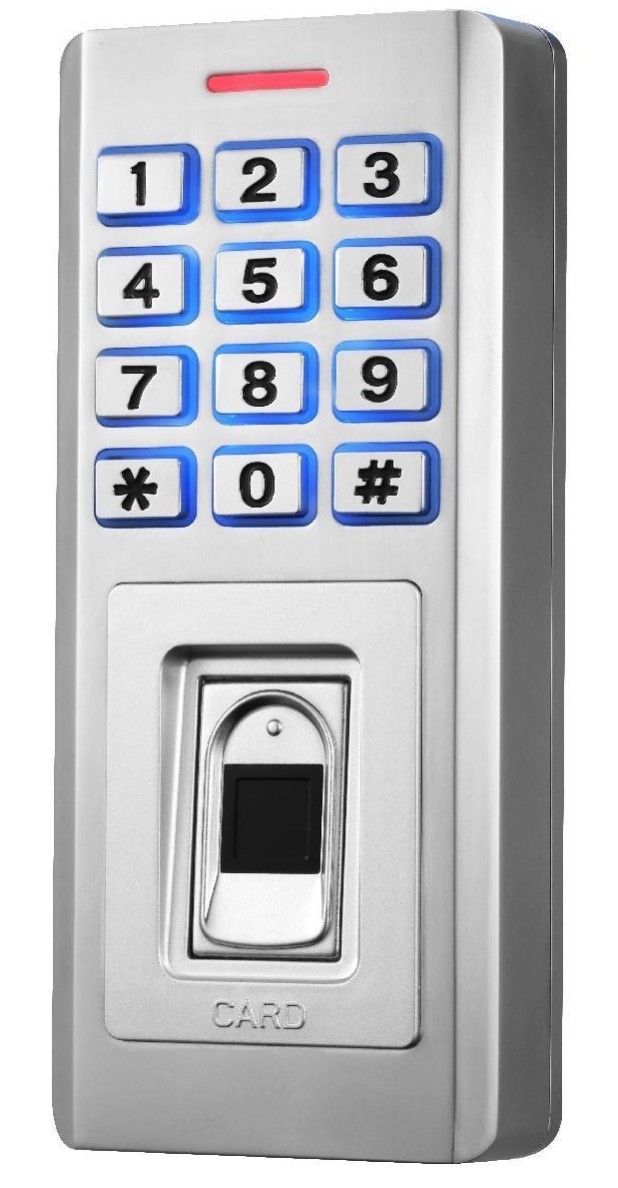

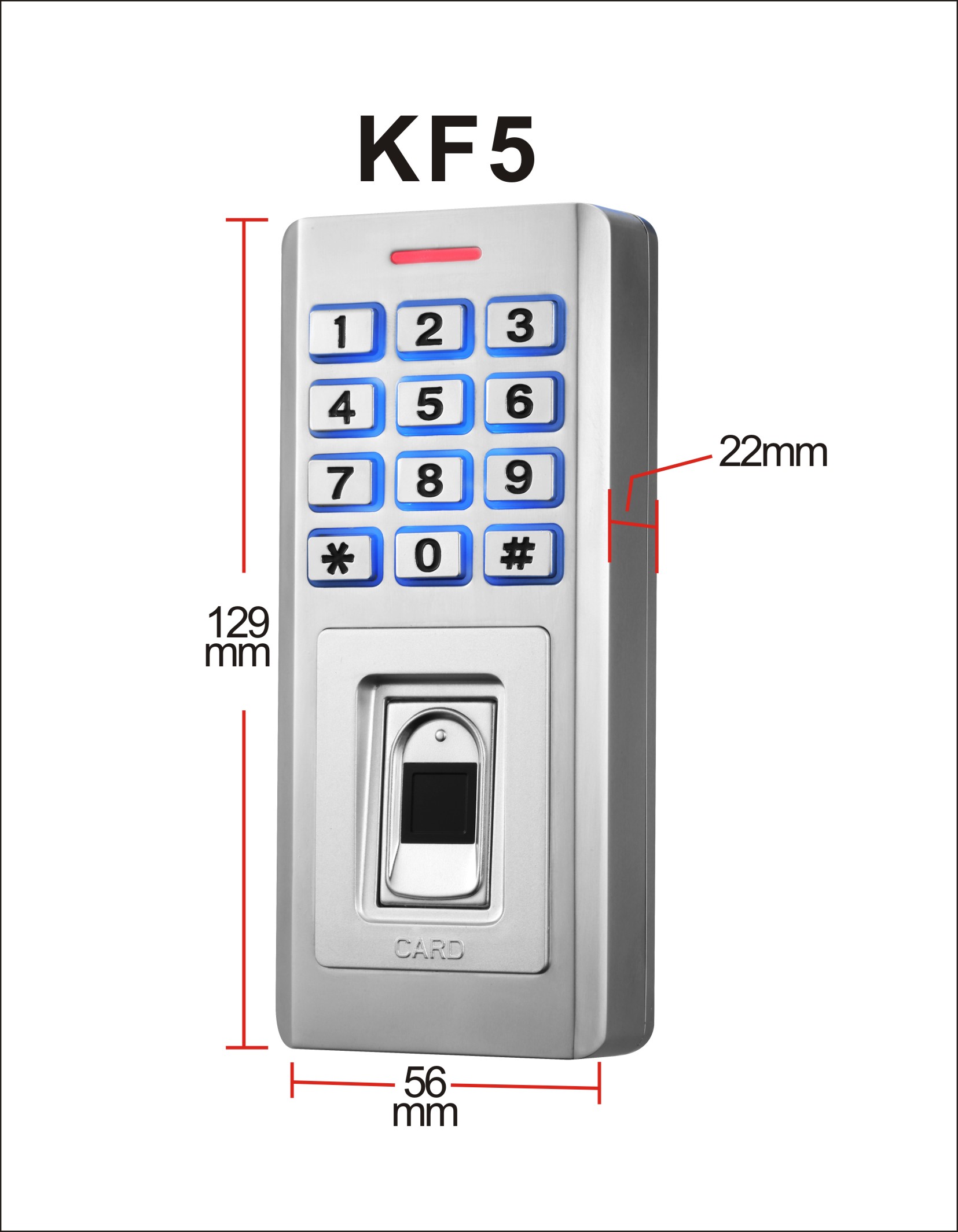

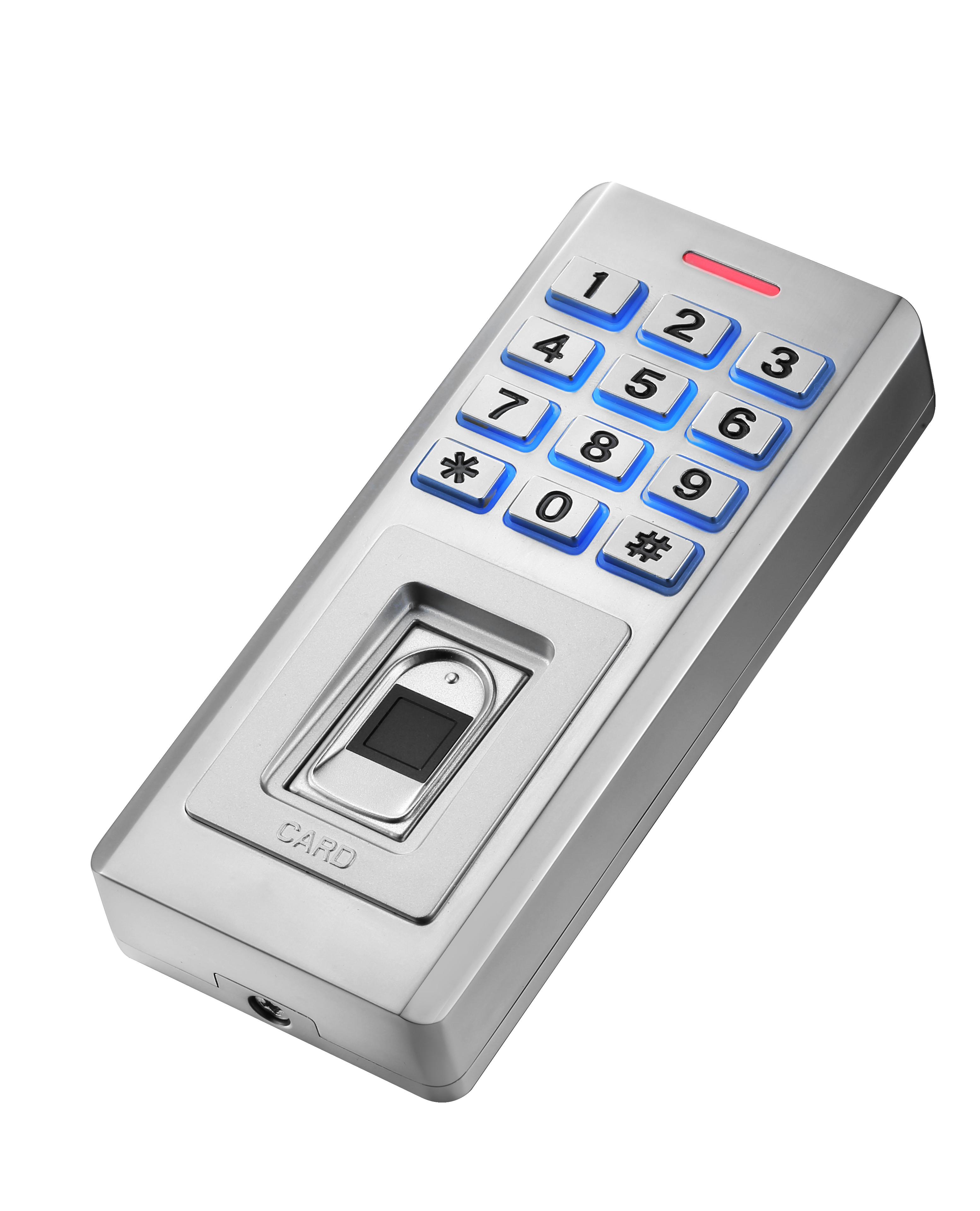

Keypad Fingerprint Access Control

Products Mode: KF5
This series’product is a new generation of multi-function standalone access control. It adopts new ARM core 32-bit microprocessor design, which is powerful, stable and reliable. It contains reader mode and standalone access control mode etc.. It’s widely applied to different occasions, such as office, residential communities, villa, bank and prison etc..

1. Features

Read 125KHz EM Card

Read 13.56MHz Mifare card

Metal backlight keypad

Contain reader mode, the transmission format could be adjusted by user.

Support seven access ways

Support admin add card and admin delete card

10,000 card/pin users and 600 fingerprint users.



2. Technical Specifications

Operating Voltage: DC 12-24V

Standby Current: ≤35mA

Operating Current: ≤100mA

Operating Temperature: -40℃~60℃

Operating Humidity: 0%~95%

Access ways: Fingerprint, card, code, or multiple combination methods
