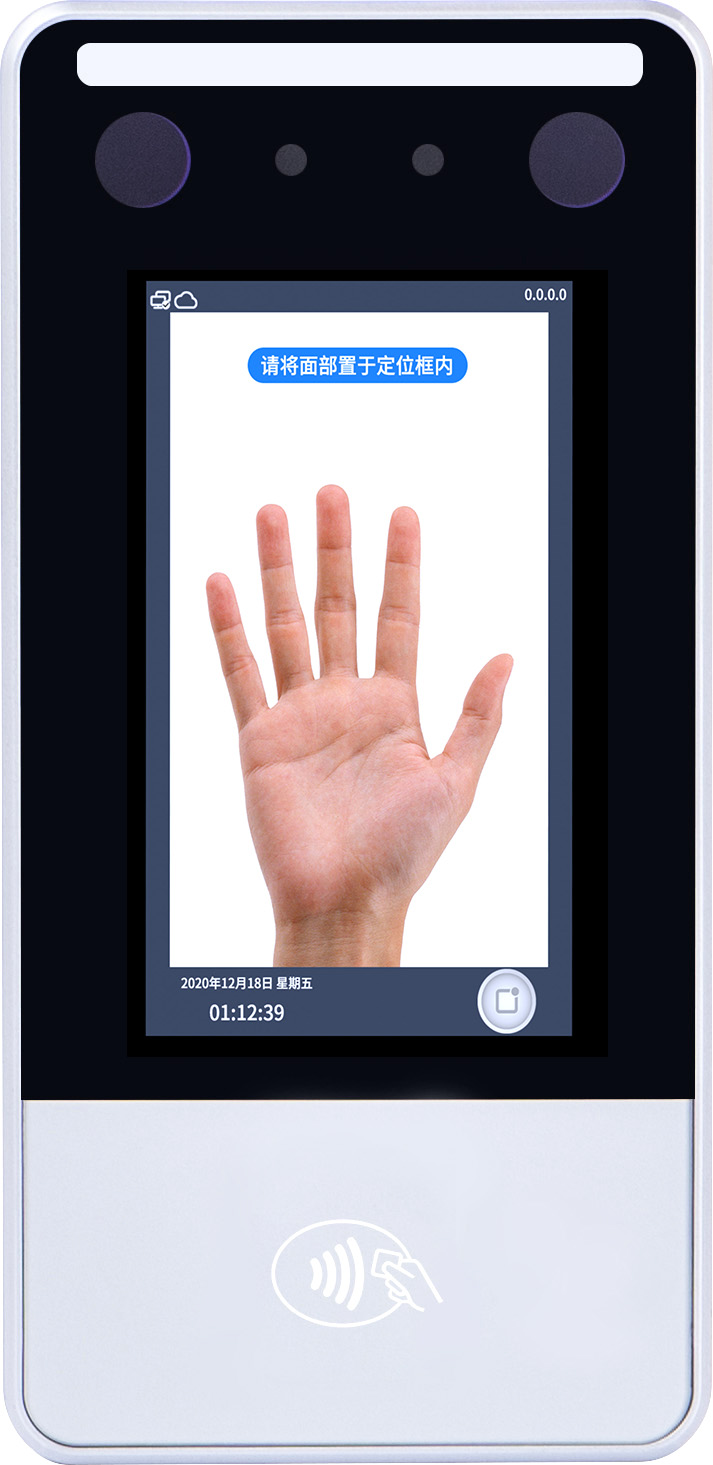

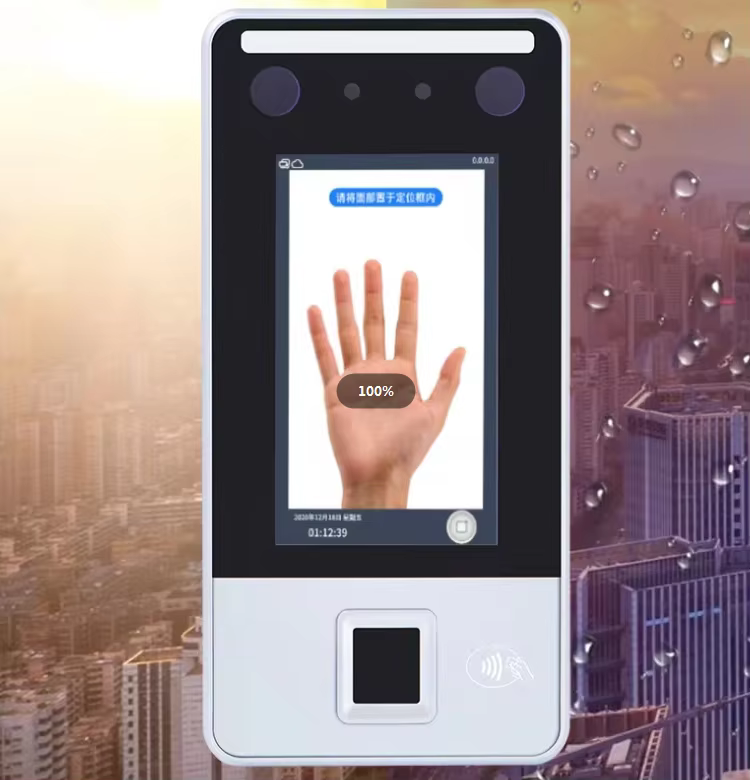

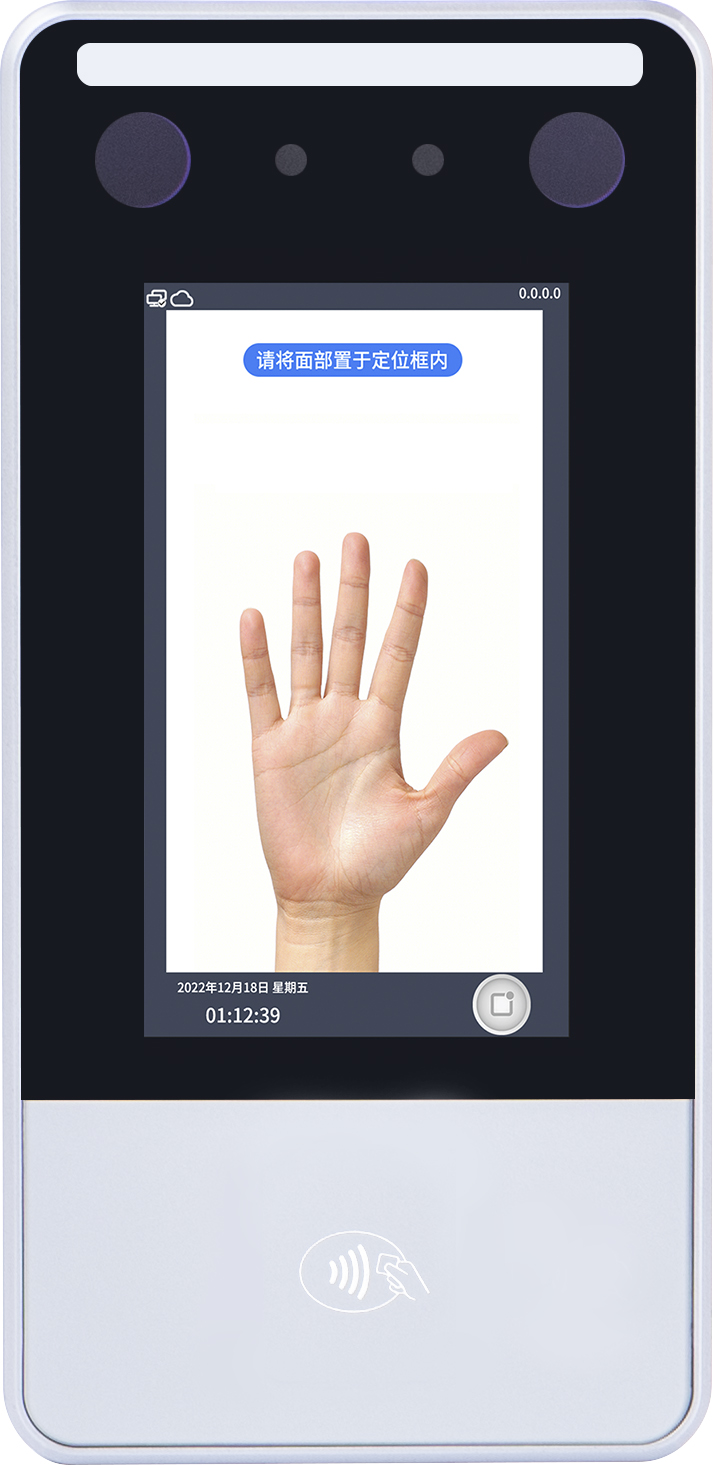

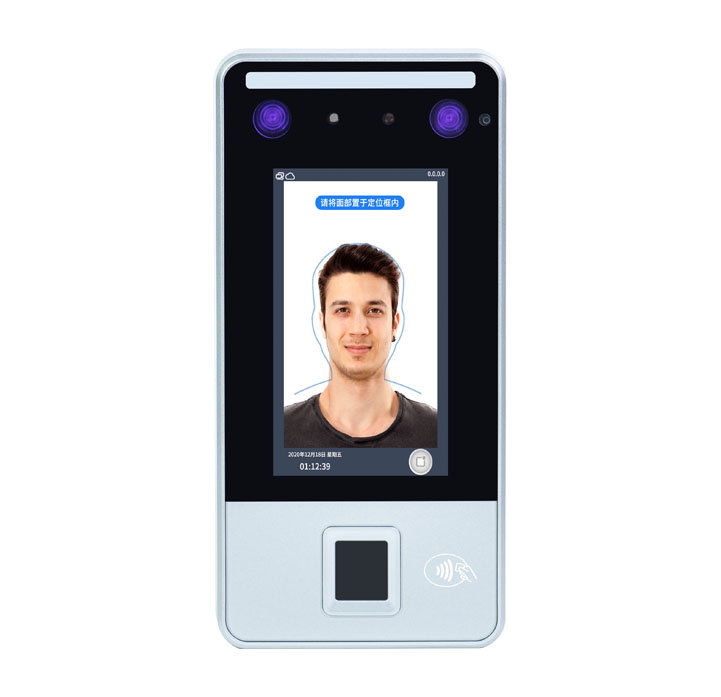

Palm Print AI Facial,Face Recognition RFID Card Access Control System Products Metal & Waterproof Face Standalone Access Controller Multi-function Facial Recognition standalone access control.
1500 face,/code/card /Fingerprint without fingerprints are optional
Card type: EM Card or Mifare Card (Optional)

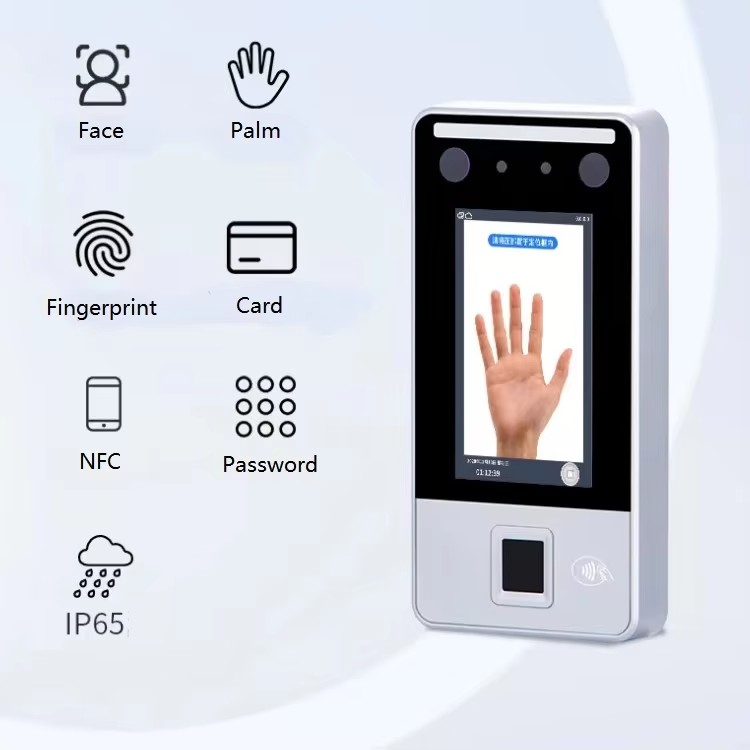

Multiple Access: face/palm,fingerprint/card,without fingerprints are optional
With Wiegand 26 or 34 bits input & output
Its widely applied to different occasions, such as offices, residential communities, villa, bank, and prison, etc.

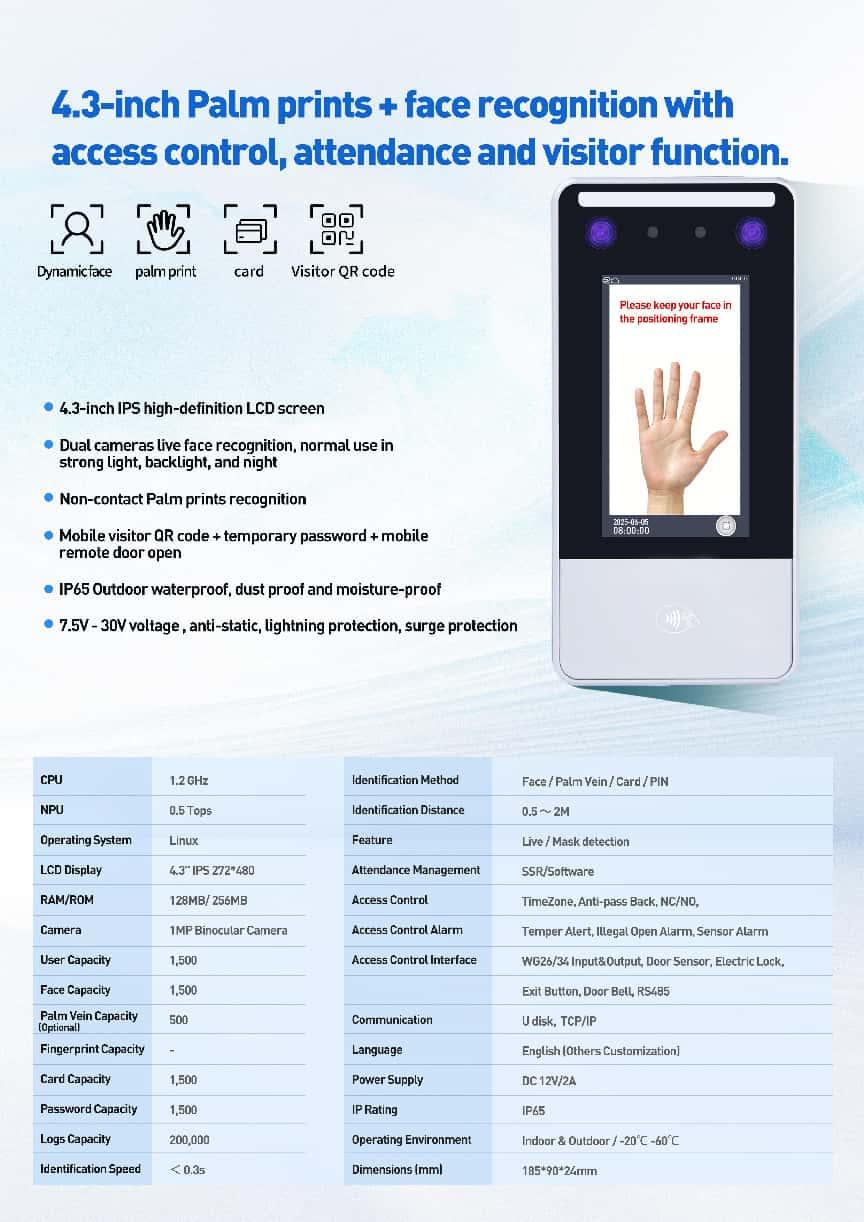

Model | MD48TS-PZ | MD48TS-P |
Advantages |
| |
CPU | 1.2GHz | 1.2GHz |
NPU | 0.5Tops | 0.5Tops |
Operating System | Linux | Linux |
LCD Display | 4.3'' IPS 272*480 | 4.3'' IPS 272*480 |
RAM/ROM | 128MB/256MB | 128MB/256MB |
Camera | 1MP Binocular Camera | 1MP Binocular Camera |
User Capacity | 1,500 | 1,500 |
Face Capacity | 1,500 | 1,500 |
Palm Vein Capacity(Optional) | 500 | 500 |
Fingerprint Capacity | 5,000 | - |
Card Capacity | 1,500 | 1,500 |
Password Capacity | 1,500 | 1,500 |
Logs Capacity | 200,000 | 200,000 |
Identification Speed | ＜ 0.3s | ＜ 0.3s |
Identification Method | Face / Palm Vein / Fingerprint / Card / PIN | Face / Palm Vein / Card / PIN |
Identification Distance | 0.5 ～ 2M | 0.5 ～ 2M |
Feature | Live / Mask detection | Live / Mask detection |
Attendance Management | SSR/Software | SSR/Software |
Access Control | TimeZone, Anti-pass Back, NC/NO, | TimeZone, Anti-pass Back, NC/NO, |
Access Control Alarm | Temper Alert, Illegal Open Alarm, Sensor Alarm | Temper Alert, Illegal Open Alarm, Sensor Alarm |
Access Control Interface | WG26/34 Input&Output, Door Sensor, Electric Lock, Exit Button, Door Bell, RS485 | WG26/34 Input&Output, Door Sensor, Electric Lock, Exit Button, Door Bell, RS485 |

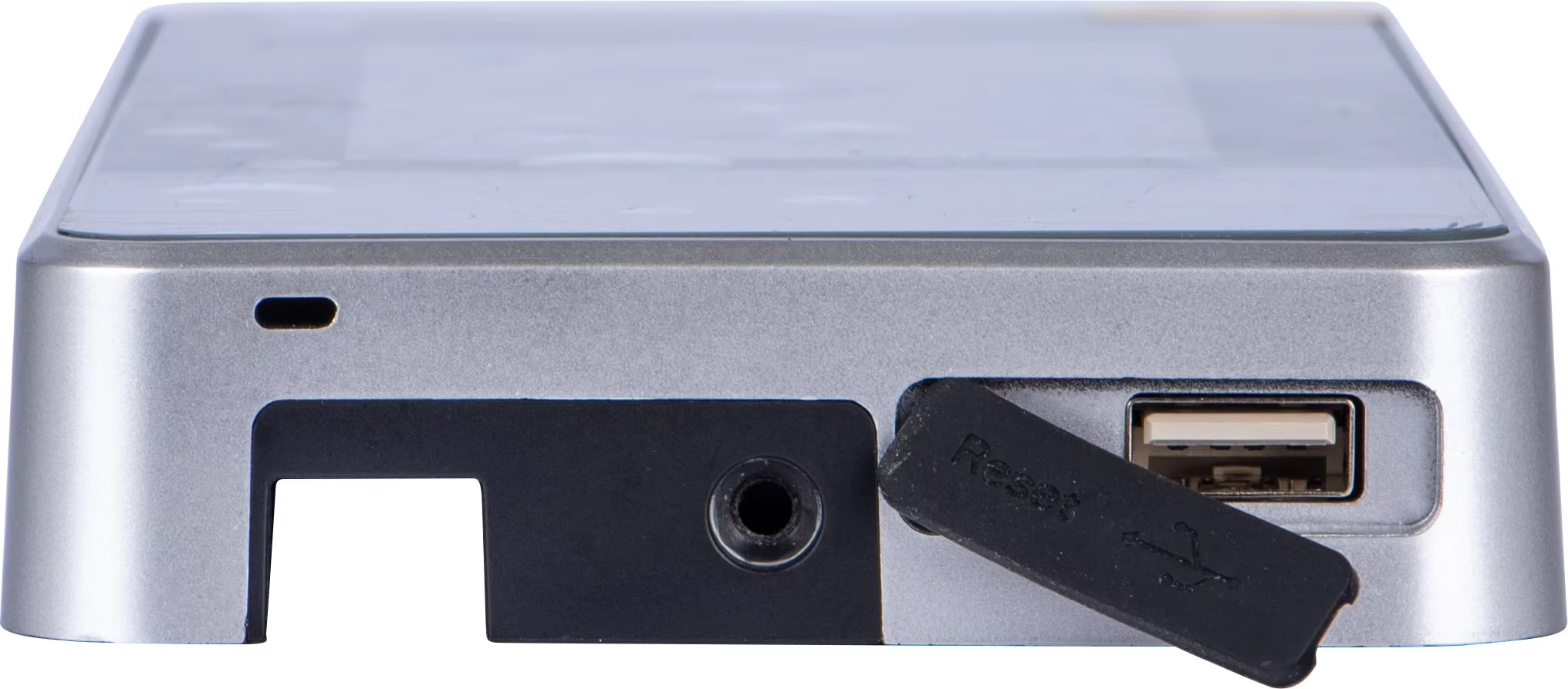

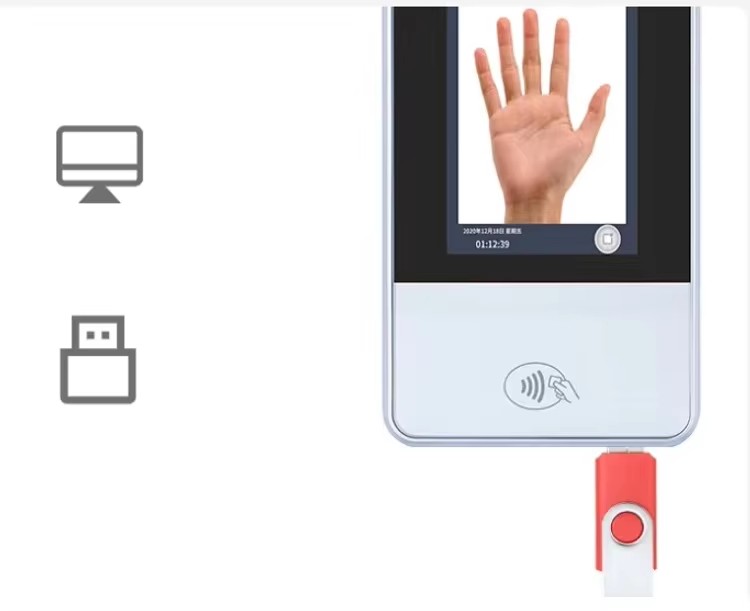

Communication | U disk, TCP/IP | U disk, TCP/IP |
Language | English (Others Customization) | English (Others Customization) |
Power Supply | DC 12V/2A | DC 12V/2A |
IP Rating | IP65 | IP65 |
Operating Environment | Indoor & Outdoor / -20℃ -60℃ | Indoor & Outdoor / -20℃ -60℃ |
Dimensions (mm) | 185*90*24mm | 185*90*24mm |
