Time Attendance products Face Recognition EM ID Software WiFi Face Recognition Door Access Control System

Products Mode: AI06
Material: Aluminum,ABS,MDF
Size: Custom Size
Colors: Black, Silver, Customized
Corner: Metal corner / Plastic corner
Handle: Metal Handle / Plastic Handle
Lining: EVA / Fabric /Nylon/ Velvet
Port: Ningbo, Shanghai
Min. Order: 50 Pieces
Delivery: 30 days after confirmation
Supply Ability: 50000 Piece/Pieces per Month
Payment: 30% Deposit by T/T and the balance before shipment or against the copy B/L
Shipping: EMS, FedEx, DHL, UPS, By Air & By Sea


Product name

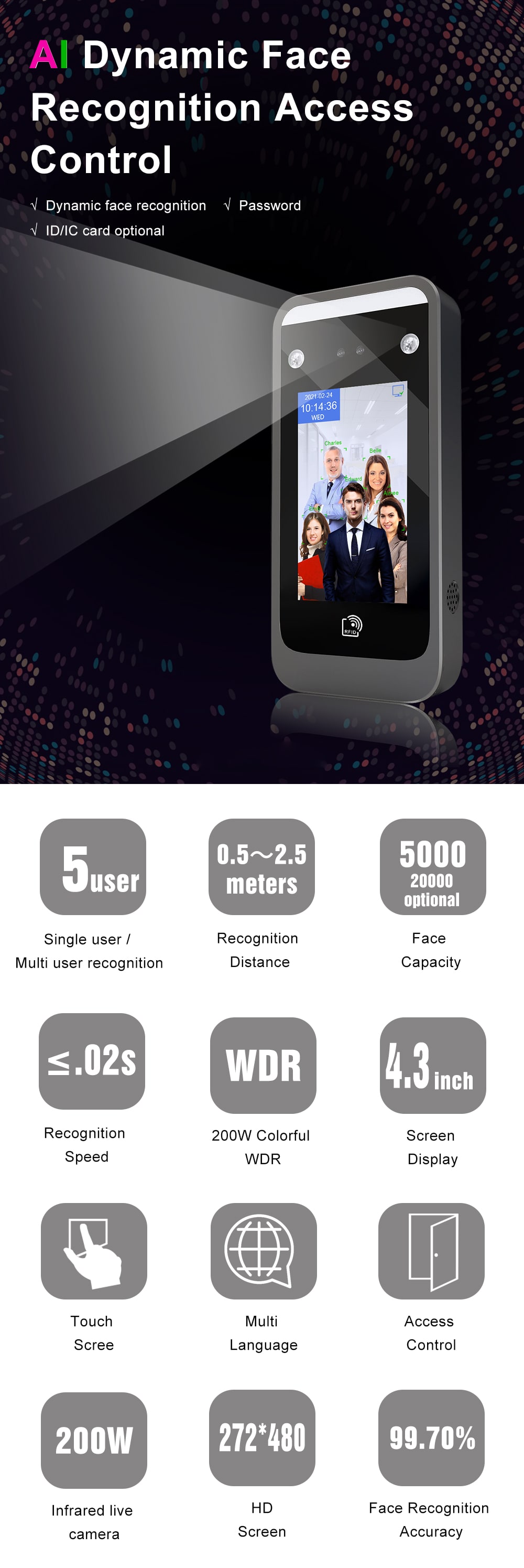

AI06 WDR AI Face Recognition Access Control Time Attendance Terminal


4.3 Inch Touch Screen


Touch keypad

Operation system

LINUX 3.10


1.2G Dual-Core ARM Cortex-A7


256M DDR3L



Binocular camera

200W pixel high-definition color camera WDR wide dynamic
200W pixel infrared live camera

Live detection

Dynamic dual-camera anti-counterfeiting, to prevent all kinds of black-and-white, color photos and videos from deception

Logs capacity


Face Registration

Local operation: Enroll face with machine, import user photo with U disk

Software operation: Import user photo to software, capture user photo with camera


Dynamic face recognition, password, ID (IC card optional)

Face capacity

5000(20000 optional)

Card Capacity

5000(20000 optional)

Password Capacity

5000(20000 optional)

Face Recognition Accuracy


Recognition Speed

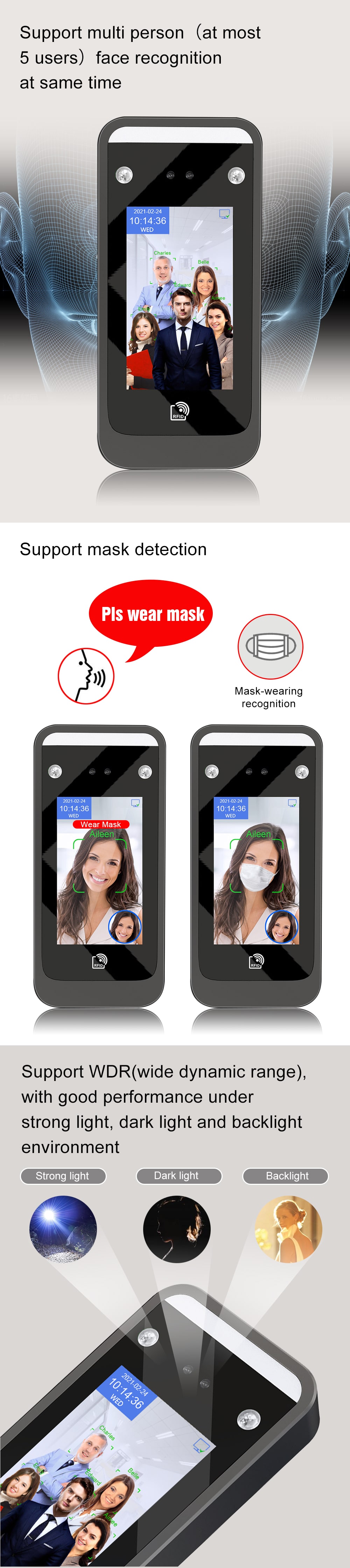

≤0.2s, support single user/multi user(at most 5 users) recognition at same time

Recognition Distance

0.5~2.5 meters (0.5~1.5 meters with live face recognition on)

Prevent Photo

Dual camera anti-counterfeiting, prevent recognition with photo/video

Principle of Identification

Face algorithm technology of multi-task cascaded convolutional neural network based on

video stream for dynamic face detection, tracking and recognition


Wide dynamic range, support accurate face recognition under Strong light, dark light and backlight


USB2.0x1,Support U disk import/export data

Power supply

DC12V 2A

Network Communication

TCP/IP, Wifi

Free Attendance sofware

Support exporting excel attendance report with U disk


Support shift setting and importing shift schedule with U disk

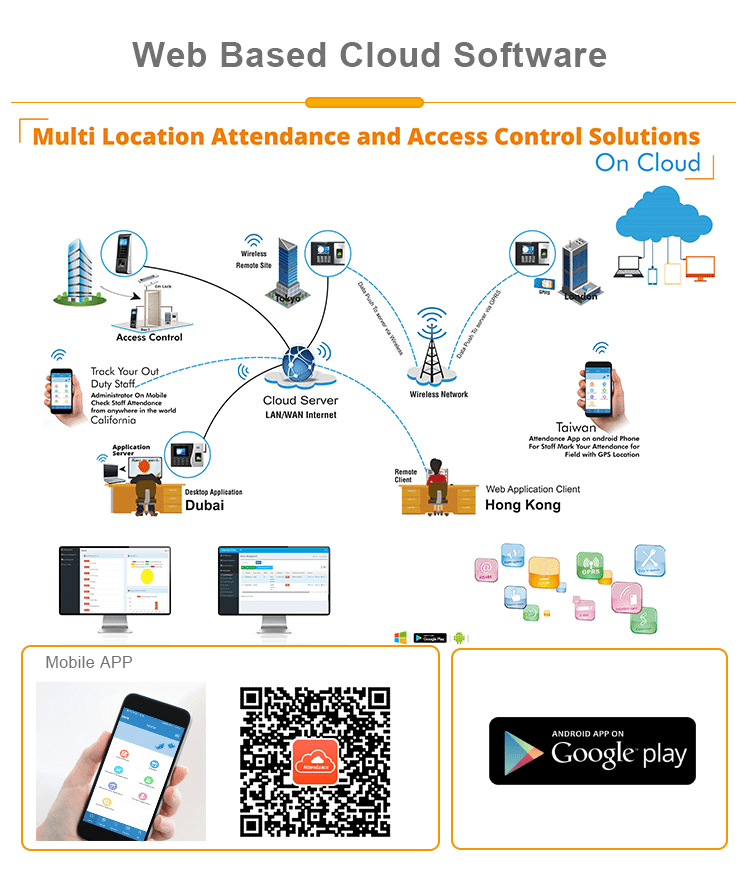

Management Software

Desktop, Cloud ,SDK, Mobile APP

Access Control Function

Door sensor: support

Alarm output:1 set

Usb Disk output:1 set

Relay output:1 set

Exit button: 1 set

WG:1 set WG In, out

Fire Input:1 set

External alarm:support

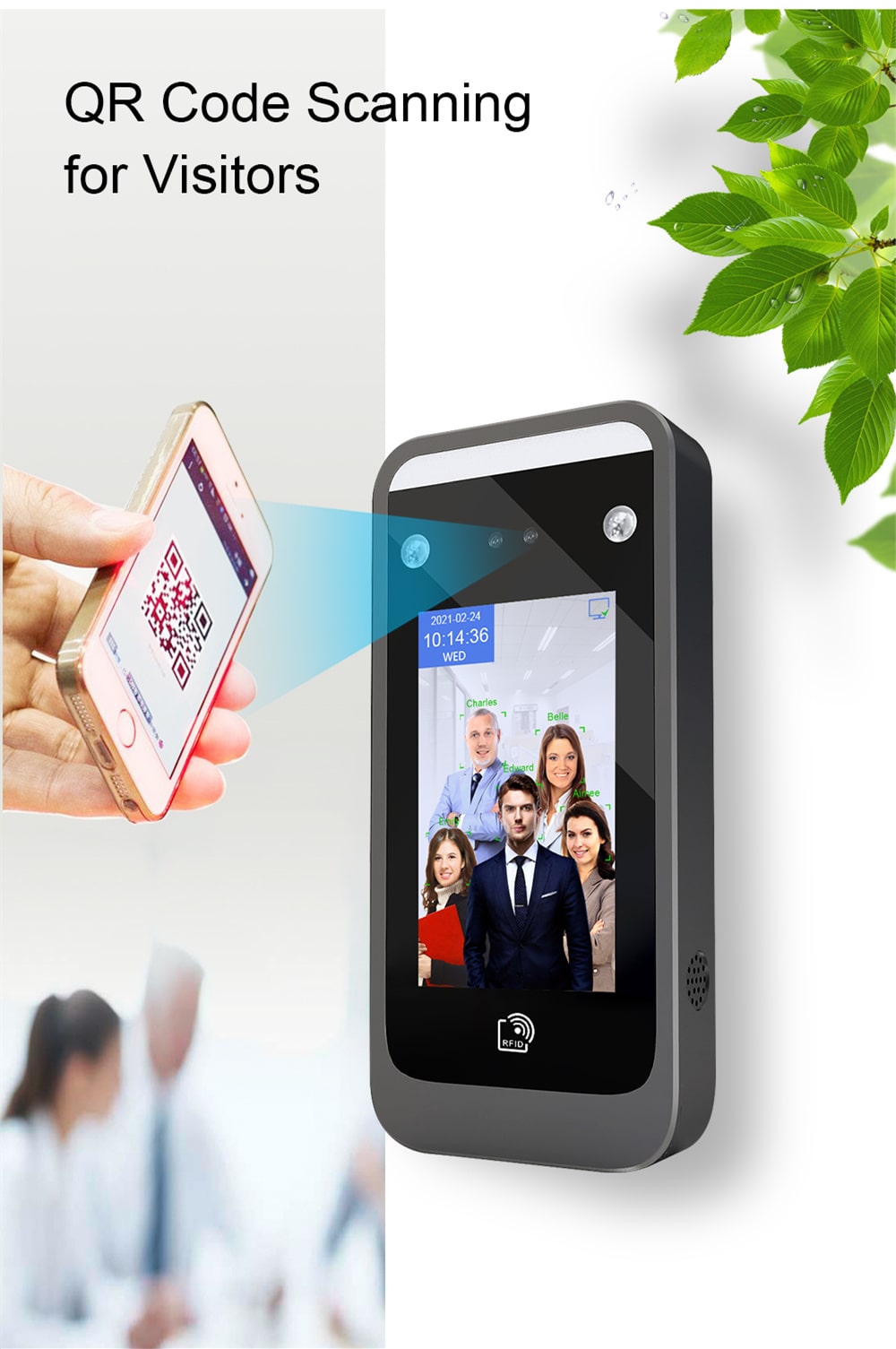

QR Code Scanner


Environmental adaptability

Working temperature: -15C~+45°C (storage temperature -40C~+65°C),

Working humidity: 20% ~90% (storage humidity 20%~90+2%),

Dark enviroment: LEDSoft light automatic fll light (Automatic control according to ambient light)

Ambient light adaptation range: 0-50000Lux

Muti language

Support 20 national languages and voices including English, Spanish, Arabic, Thai, Farsi, Portuguese, French, Italian, Japanese,Korean, etc

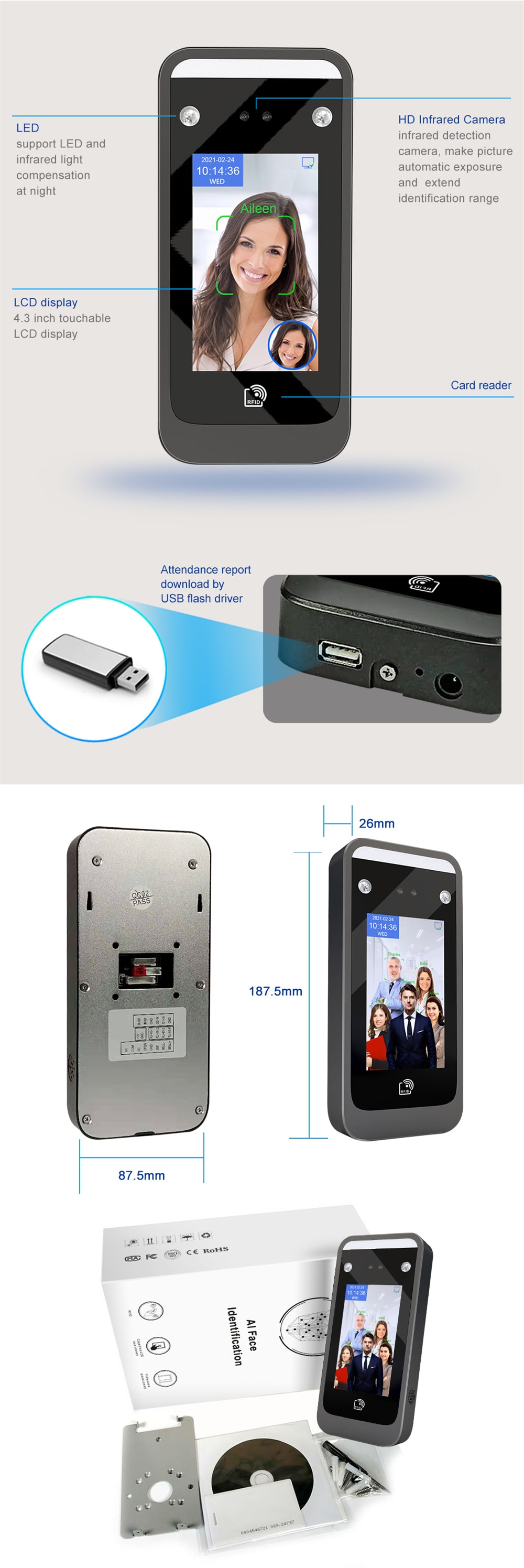

Installation Way

Standard: Wall mount, desktop stand; Optional: bracket for turnstile, floor stand
