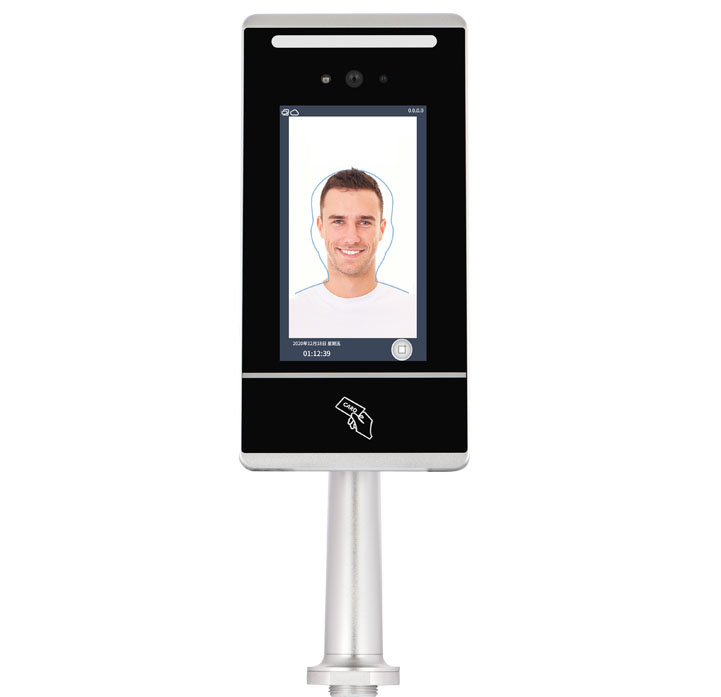

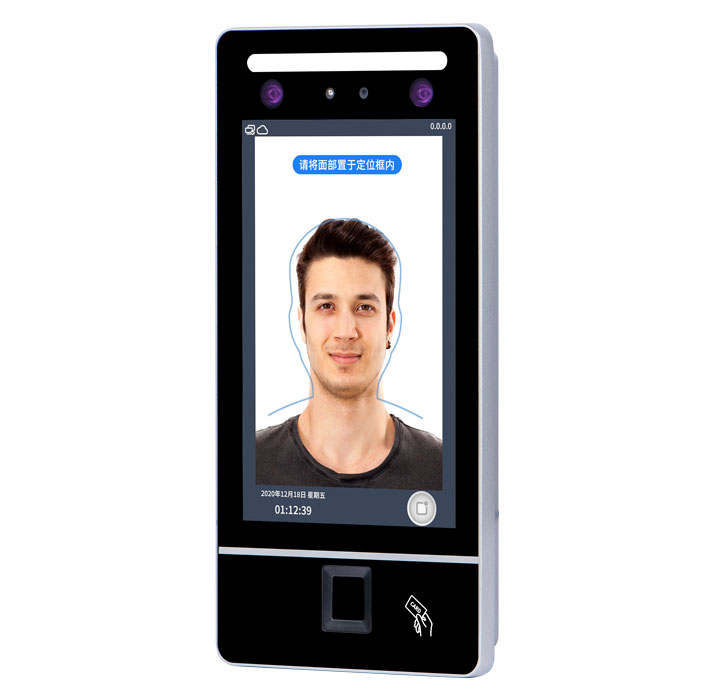

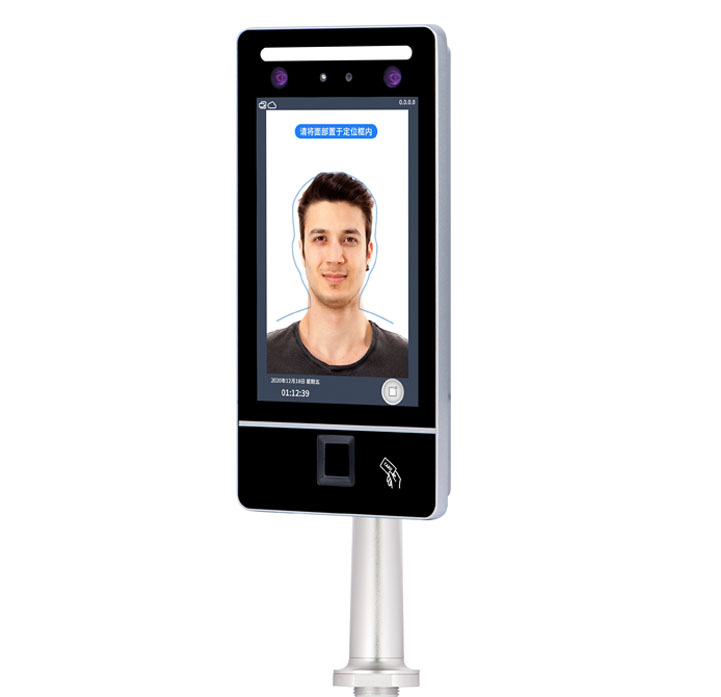

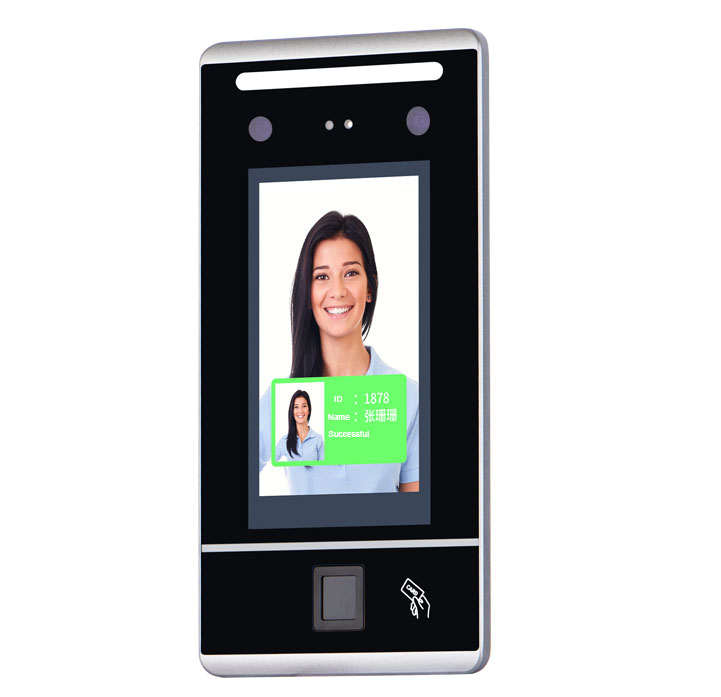

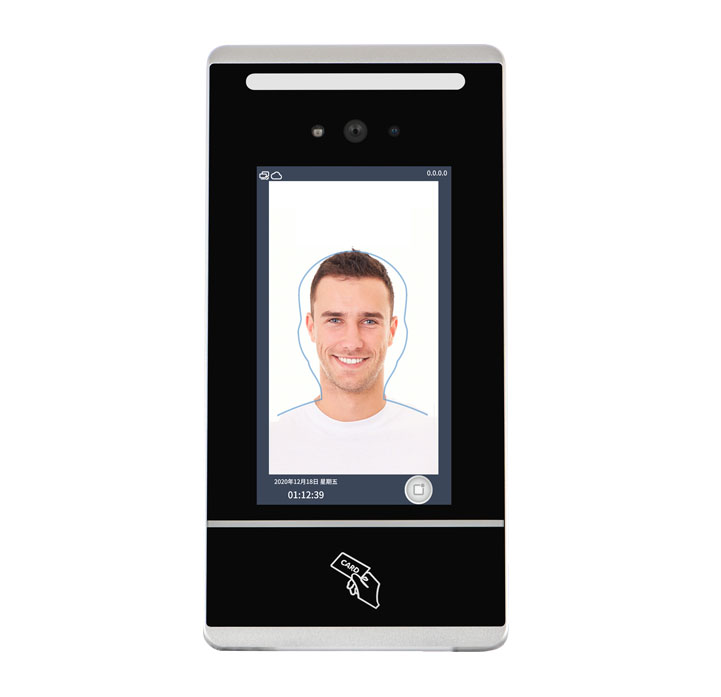

7 inch and 8 inch Metal Waterproof Series Palm Vein and Facial Recognition Access Control Terminal

Products Mode: MD809

Palm Print AI Facial,Face Recognition RFID Card Access Control System Products

Metal & Waterproof Face Standalone Access Controller Multi-function Facial Recognition standalone access control.

10000 face,/code/card /Fingerprint
Card type: EM Card or Mifare Card (Optional)

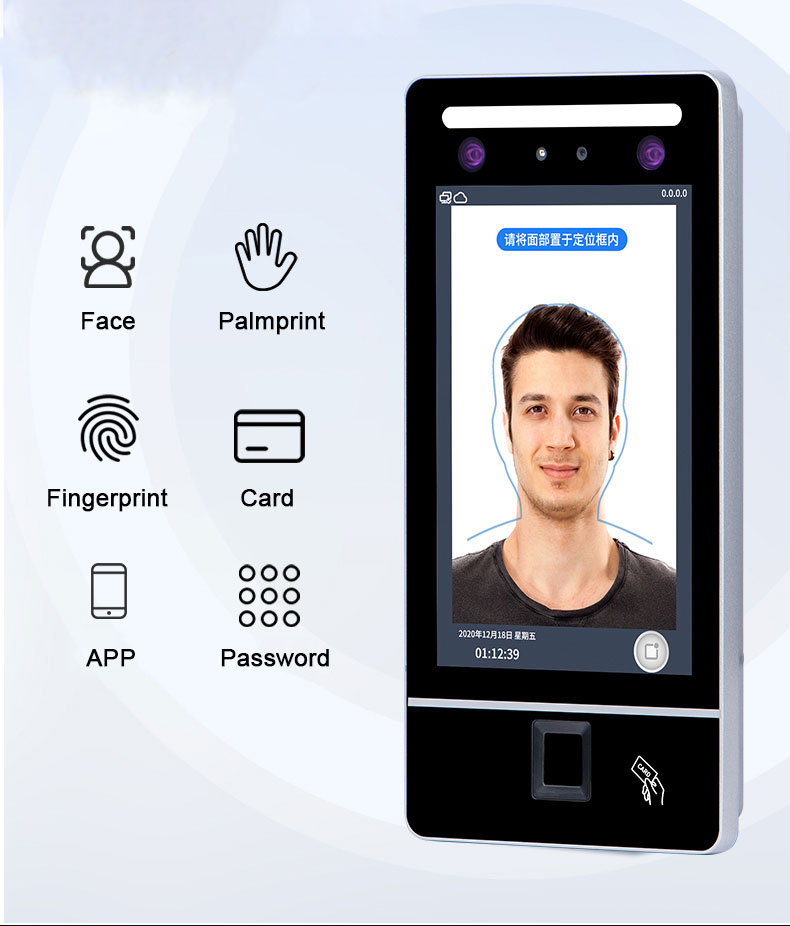

Multiple Access: face/palm,rfid card,fingerprint version is optional.
With Wiegand 26 or 34 bits input & output
Its widely applied to different occasions, such as offices, residential communities, villa, bank, and prison, etc.

Model

MD809

MD726-TS

Advantages

The 8-inch large-screen and high-capacity model is the top choice for projects

The 7-inch large-screen Serials

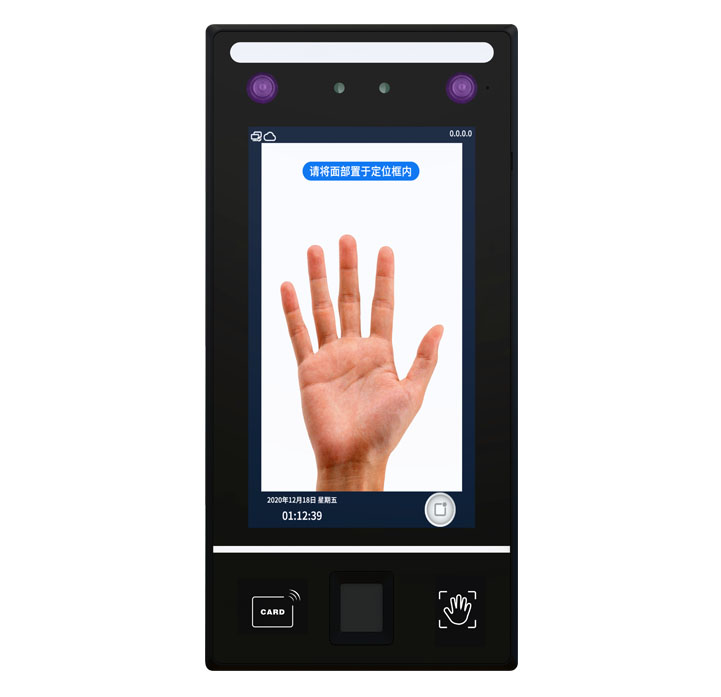

Strong light facial recognition + strong light fingerprint sensor, outdoor waterproof casing (with continuous rainy testing for three days), 7.5V-30V wide voltage design, and includes palm vein recognition.

CPU

1.5GHz

1.2GHz

NPU

1.2Tops

0.5Tops

Operating System

Linux

Linux

LCD Display

8" IPS 800*1280

7" IPS 1024×600

RAM/ROM

512MB/8G

256MB/512MB

Camera

2MP Binocular Camera

1MP Binocular Camera

User Capacity

20,000

10,000

Face Capacity

20,000

10,000

Palm Vein Capacity(Optional)

5,000

1,000

Fingerprint Capacity

20,000

10,000

Card Capacity

20,000

10,000

Password Capacity

20,000

10,000

Logs Capacity

200,000

200,000

Identification Speed

0.2s

0.3s

Identification Method

Face / Palm Vein / Card /PIN/Fingerprint

Face / Palm Vein / Card /PIN

Identification Distance

0.5  2M

0.5  2M

Feature

Live / Mask detection

Live / Mask detection

Attendance Management

Software

Software

Access Control

TimeZone, Anti-pass Back, NC/NO

TimeZone, Anti-pass Back, NC/NO

Access Control Alarm

Temper Alert, Illegal Open Alarm, Sensor Alarm, Fire Alarm

Temper Alert, Illegal Open Alarm, Sensor Alarm, Fire Alarm

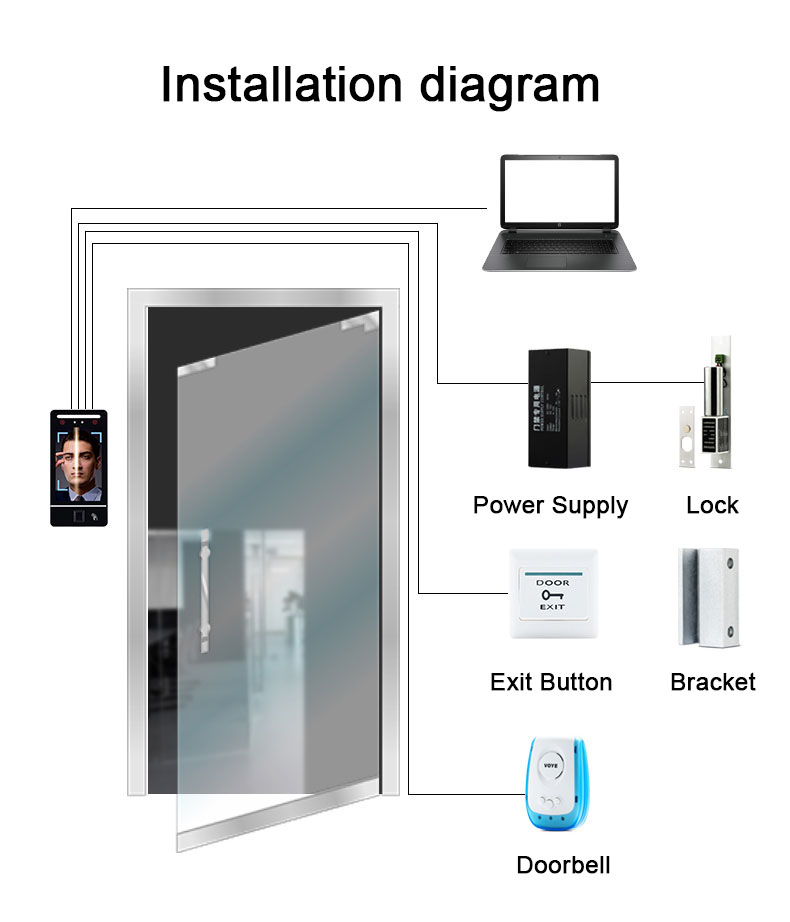

Access Control Interface

WG26/34 Input&Output, Door Sensor, Electric Lock, Exit Button, Door Bell, Fire Input, Alarm Output, RS485, RS232

WG26/34 Input&Output, Door Sensor, Electric Lock, Exit Button, Door Bell, Fire Input, Alarm Output, RS485

Communication

U disk, TCP/IP, WiFi

U disk, TCP/IP, WiFi

Language

English (Others Customization)

English (Others Customization)

Power Supply

DC 12V/2A

DC 12V/2A

IP Rating

IP65

IP65

Operating Environment

Indoor & Outdoor / -30 -60

Indoor & Outdoor / -20 -60

Dimensions (mm)

275*135*31mm

275*135*31mm
