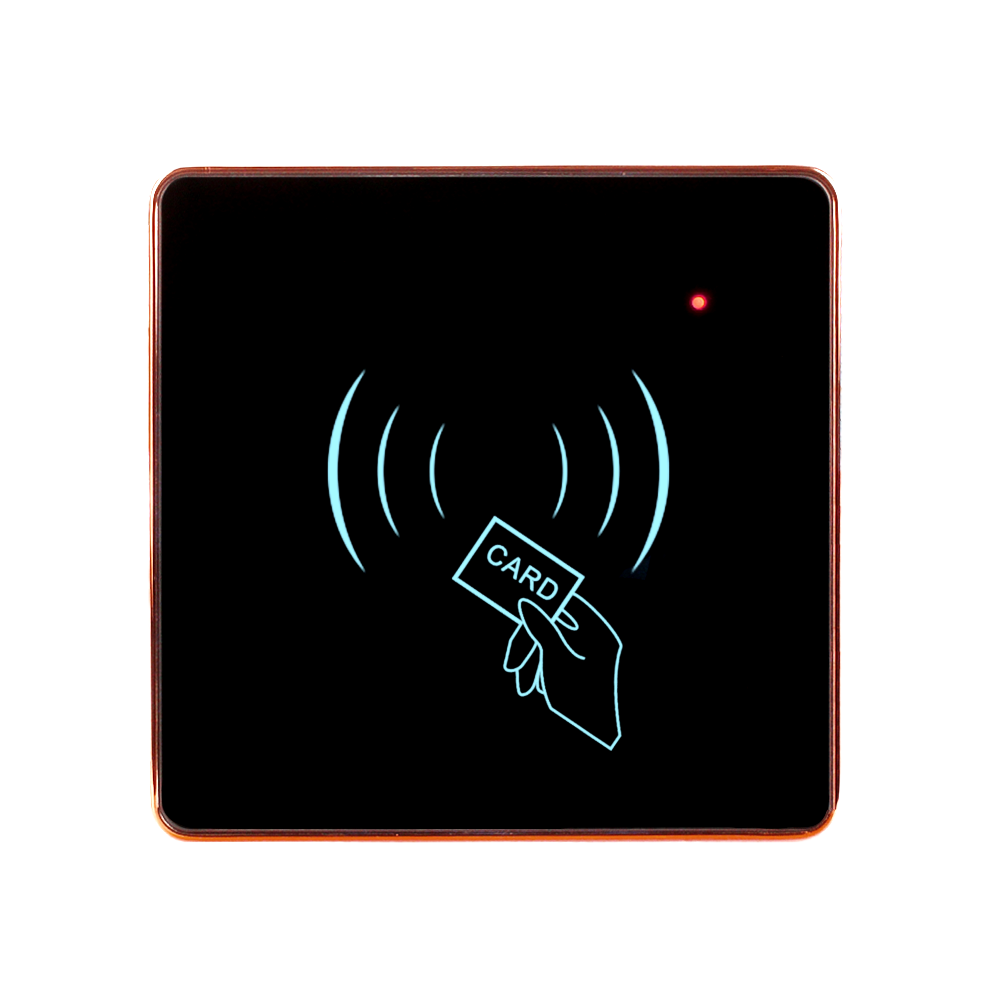

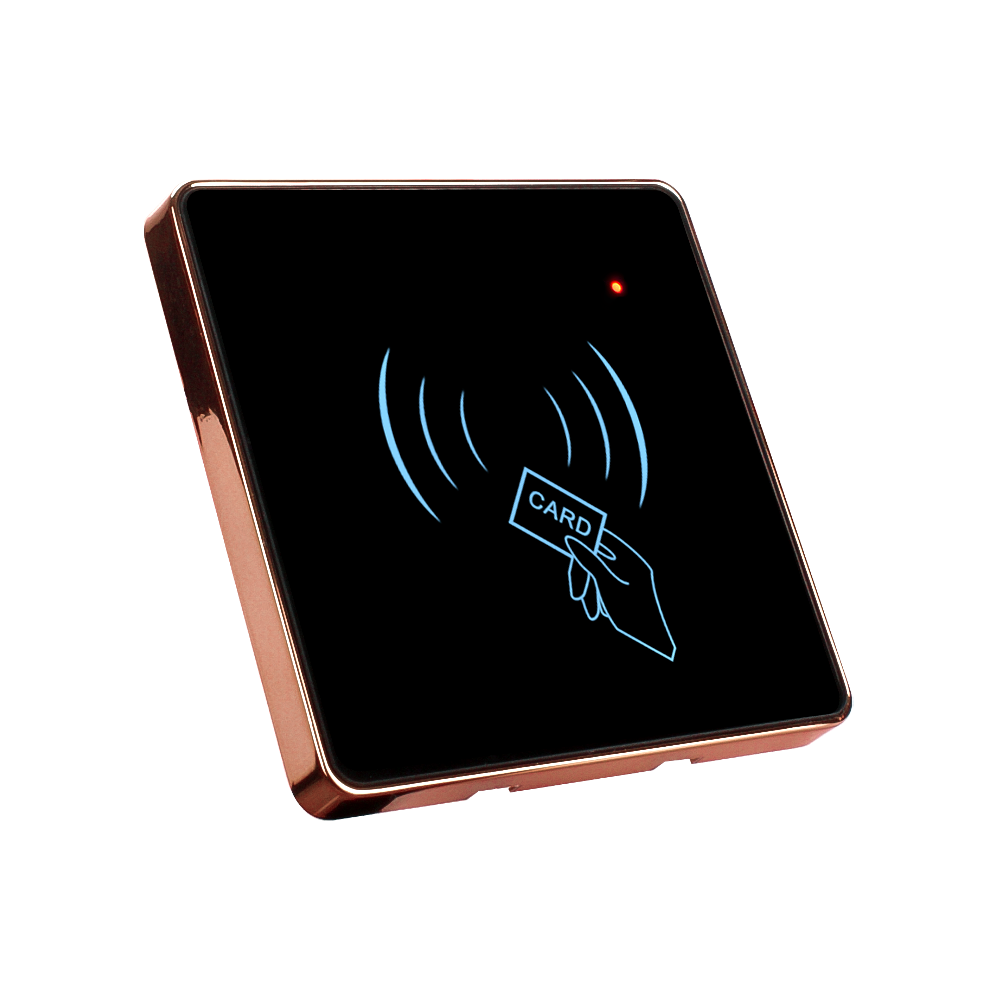

Cloud access control which is a networked cloud WIFI access control product,The product supports IC card opening, BLE door opening, etc., convenient for users to choose flexibly, can support, LAN network port communication methods.
Features
Software functions: equipment management, personnel management, authority management, record viewing
can be provided for secondary development.
Size: 86×86×34(mm) Color: Black (BLACK)
Working voltage: DC 9~12V
Working current: ≤100mA
Card Reading Type:IC
Door opening method: IC card, mobile phone BLE, remote, WeChat to open the door
Communication: WIFI/LAN
Parameters
Size | 86×86×34 (mm) |
Material | ABS enclosure |
Color | Black |
Working voltage | DC 9~12V |
Working current | ≤100mA |
Card Reading Type | IC |
Door opening method | IC card, mobile phone BT, remote, WeChat door opener, |
Communication | WIFI/LAN |
Operating humidity |
5%-90% |
Operating temperature |
-20~70℃ |
The storage | 15000 pieces |
Read speed | <200ms |
Swipe distance | 0-5cm |
Applications
This product is widely used in office buildings, offices, intelligent buildings, public passages, finance, educational institutions, properties, smart hotels, schools, government, construction sites and other fields...
