Mobile Wifi or LAN access control keypad support QR code, mobile,remote, web server Cloud,API.

Products Mode: Y30Q
Place of Origin: Guangdong,China
Material: aluminum metal
Weight: 0.25Kg
Colors: black
Certification: CE
Working voltage: DC12 ~ 12V
Working current: ≤ 100mA
Door opening mode: ID / IC card, mobile Bluetooth, remote, wechat, QR code,remote
Communication: LAN/WIFI
Mobile Wifi or LAN access control support QR code, mobile,remote, web server Cloud,API. *Opening Door: EM or mifare card, Bluetooth ,QR code mutual scanning,mobile API remote,mobile visitor code share *Wifi or LAN communication *API, use Google browser input https://web.fondcard.net/entpwa/index.html#/
Port: Shenzhen
Brand: Fondvision
Min. Order: 1
Supply Ability: 1000pcs/week
Payment: T/T,Western Union,Paypal and so on
Shipping: DHL,Ups,FedEx,TNT

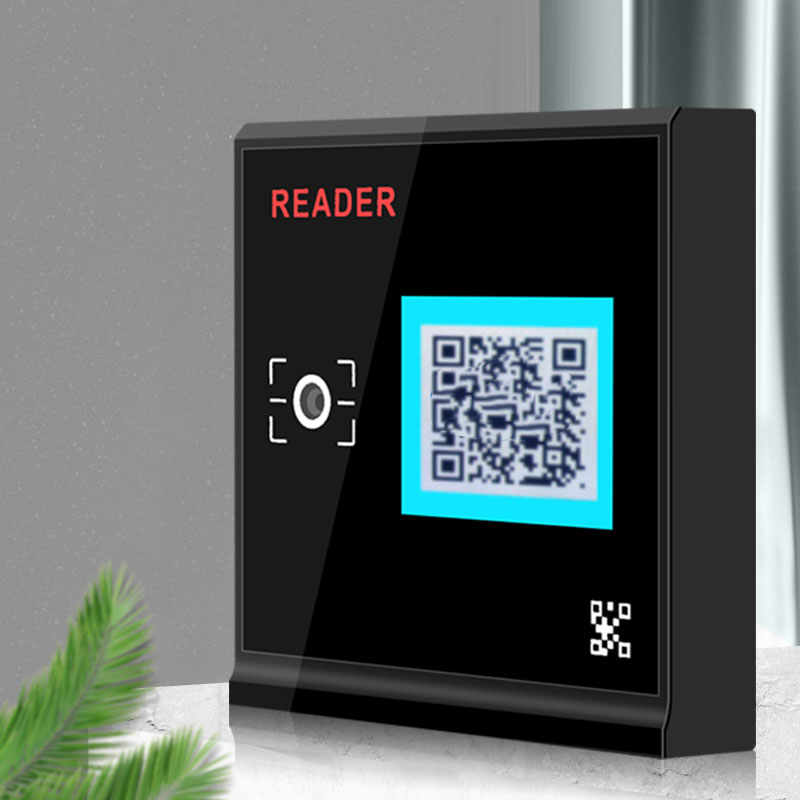

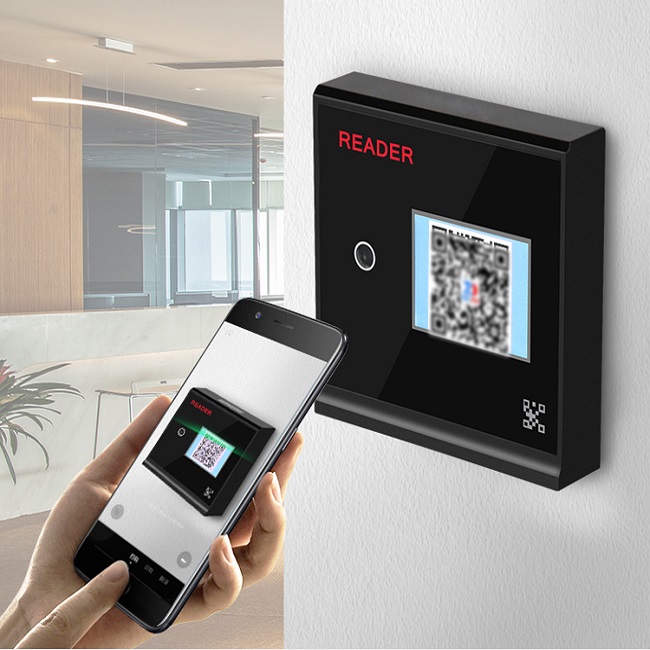

Y30Q cloud access control adopts ABS material appearance design, which is a networked mutual scanning QR code cloud access control product

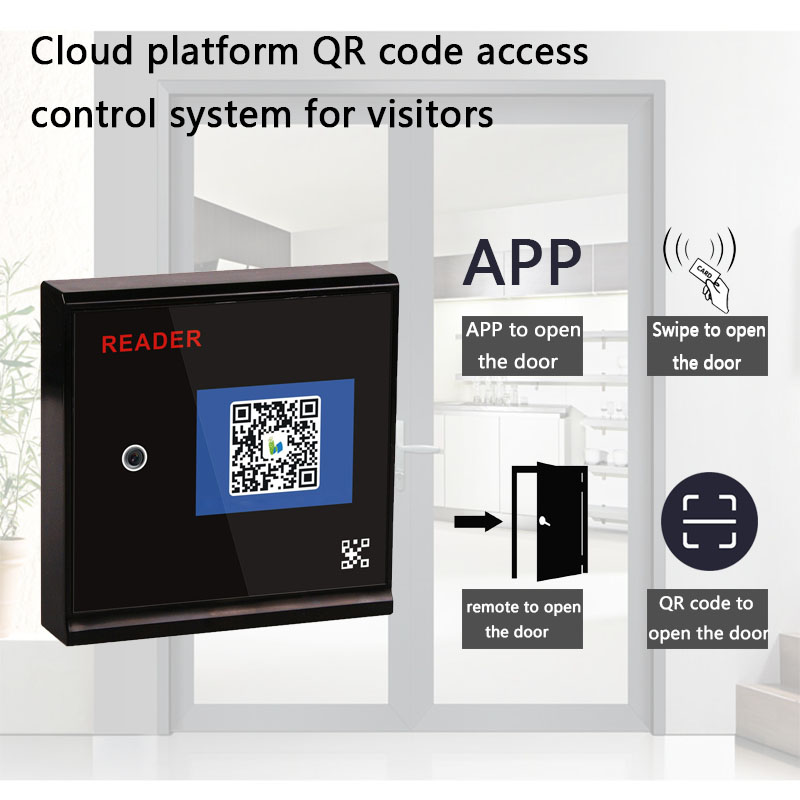

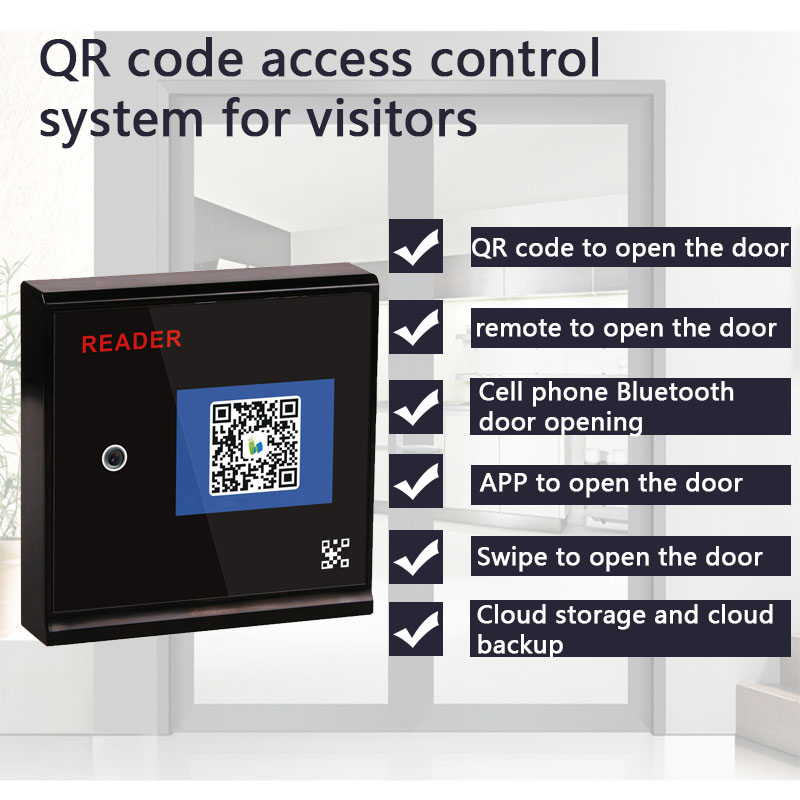

The product supports ID/IC card opening, Bluth door opening, network opening door, WeChat door opening, two-dimensional code mutual scanning door opening, etc., convenient for users to choose flexibly, can support 4G, LAN network port two communication methods, users flexible choice, to achieve user data and access control records upload and download, configure the professional version of access control attendance management background website

 Product characteristics

Ø HD 2 million pixel camera, accurate realization of two-dimensional code instantaneous second scanning;

Ø Perfect software functions: equipment management, personnel management, authority management, record viewing

Ø can be provided for secondary development.



General



*Opening Door: EM or mifare card, Bluth ,QR code mutual scanning,mobile API remote,mobile visitor code share

*Wifi or LAN communication



Features

Camera

HD 2 million pixel

Software Function

With Cloud Server Web Base Software

SDK

Http SDK,welcome OEM or ODM

Light

Blue-green LED


1.7inch TFT screen show QR code

Proximity distance

0-5cm

Way to open the door

EM or mifare card, Bluth ,QR code mutual scanning,mobile API remote,mobile visitor code share

Read speed

<200ms

The card number stores the value

15000 pieces

Networking mode

Wifi LAN

Unlock type

Relay output

Cloud platform

Cloud backup, cloud storage, cloud management

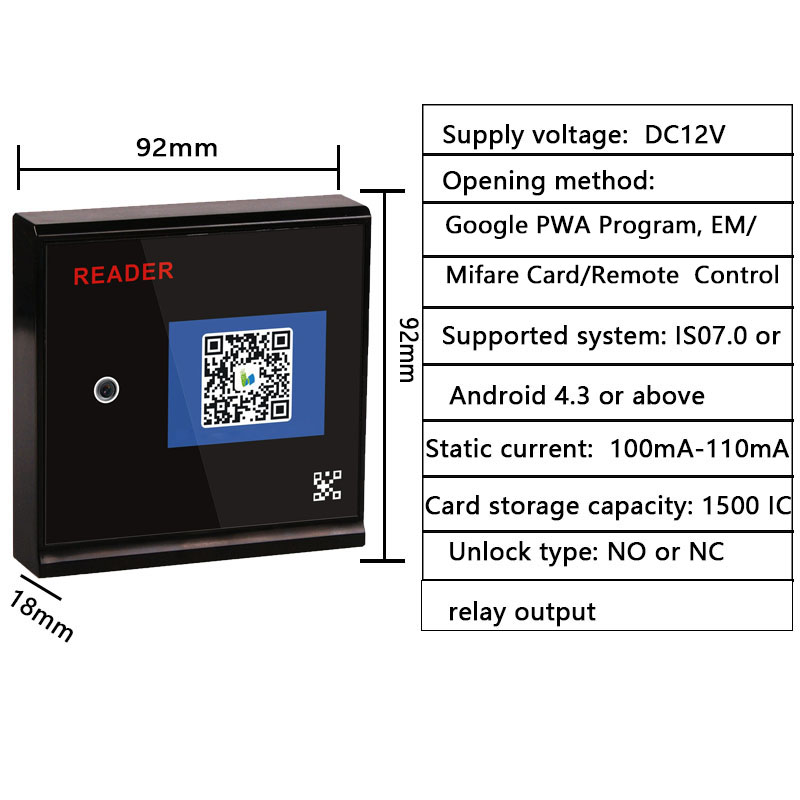

Dimensions

92×92×21(mm

List of packaging parts

(Y30Q, manual, 5P line) × 1

Net weight

135±8g

Material

ABS enclosure

Exterior color

black

Operating voltage

9~12VDC±10%

Operating current

≤100mA

power consumption

200mw

Operating humidity

5%-90%

Operating temperature

-20~70℃





 Cloud mutual barcode scanner mobile wifi access control deviceCloud mutual barcode scanner mobile wifi access control deviceCloud mutual barcode scanner mobile wifi access control deviceCloud mutual barcode scanner mobile wifi access control deviceCloud mutual barcode scanner mobile wifi access control deviceCloud mutual barcode scanner mobile wifi access control deviceCloud mutual barcode scanner mobile wifi access control device



Wire Connection

NO

color

Function

port

1

red

DC9~12V power

VCC(+)

2

black

GND

GND(-)

3

Grey

Normal Close Lock

NC

4

blue

Public Port

COM

5

brown

Normal Open Lock

NO



 Cloud mutual barcode scanner mobile wifi access control device



Application


This product is widely used in office buildings, offices, public passages, finance, educational institutions, smart hotels,etc.
