Y20QCloud access control using ABS material appearance design, is a networked two-dimensional code cloud access control products, the product supports ID / IC card door opening, Bluth door opening, network door opening, WeChat door opening, two-dimensional code door opening and other ways, convenient for users to flexibly choose,
General
*Opening Door: EM or mifare card, Bluth ,QR code mutual scanning,mobile API remote,mobile visitor code share
*Wifi or LAN communication
characteristics
Acrylic panel, scratch-proof and anti-rubbing, small size, simple and convenient operation

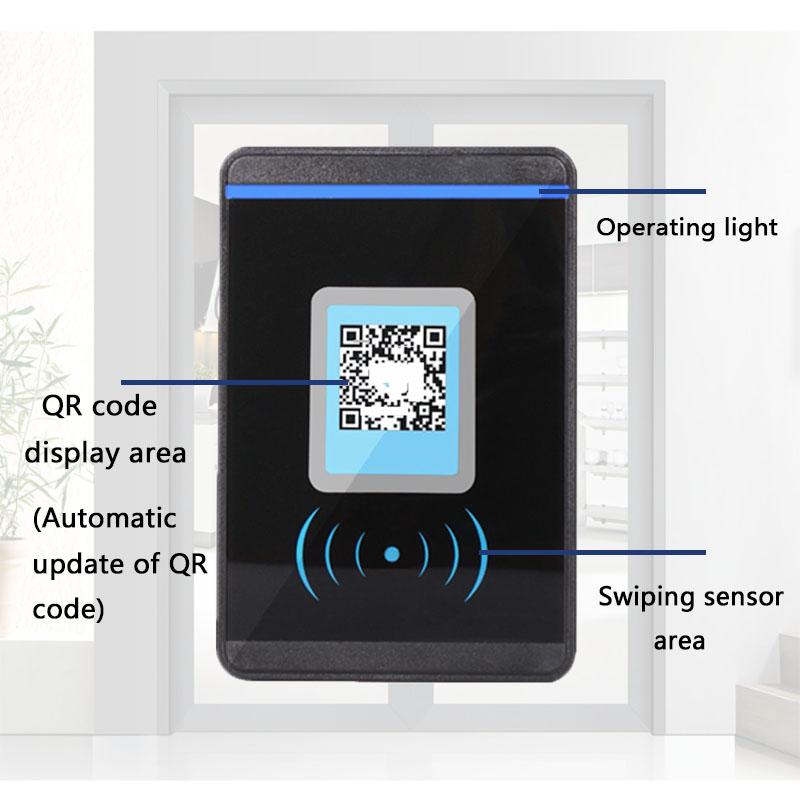

Comes with a dynamic two-dimensional code identification area, sweep the door to open, convenient and fast
The storage capacity is large, up to 15,000 card times, and the door opening record reaches 13,000 times
The product can be customized, can be developed for secondary development, and provide detailed technical support and guidance
Features
Camera | HD 2 million pixel |
Software Function | With Cloud Server Web Base Software |
LCD | 1.7inch TFT screen show QR code |
SDK | Http SDK,welcome OEM or ODM |
Light | Blue-green LED |
Proximity distance | 0-5cm |
Way to open the door | EM or mifare card, Bluth ,QR code mutual scanning,mobile API remote,mobile visitor code share
|
Read speed | <200ms |
Card Capacity | 15000 pieces |
Networking mode | Wifi/ LAN |
Unlock type | Relay output |
Cloud platform | Cloud backup, cloud storage, cloud management |

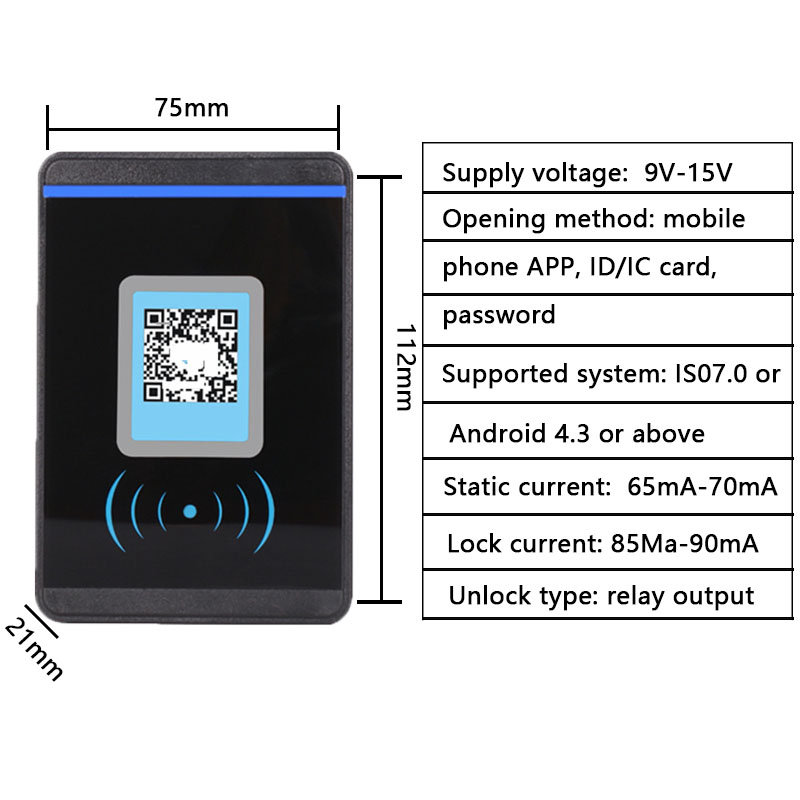

Size | 112×75×21(mm) |
List of packaging parts | (Y20Q, manual, 5P wire) × 1 |
Net weight | 200±8g |
Material | ABS,Acrylic panel Face Panel |
Exterior color | black |
Operating voltage | 9~12VDC±10% |
Operating current | ≤100mA |
power consumption | 200mw |
Operating humidity | 5%-90% |
Operating temperature | -20~70℃ |

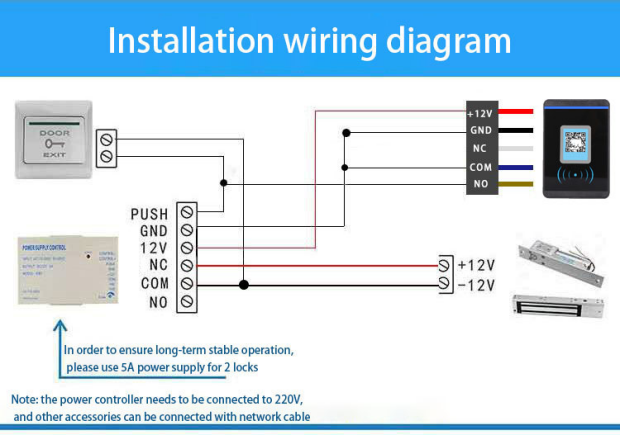

Wire Connection
No. | Color | Function | Port |
1 | red | DC9~12V power | VCC(+) |
2 | black | GND | GND(-) |
3 | Grey | Normal Close Lock | NC |
4 | blue | Public Port | COM |
5 | Brown | Normal Open Lock | NO |
