Cloud access control reader

Products Mode: Y20Q
Place of Origin: Guangdong,China
Colors: Black
Communications: : 4G
Dimensions:  112×75×21(mm)
Working voltage: DC 9~12V
Working current: ≤100mA
Door opening method: :  ID/IC card, scan code mobile phone Bluetooth, mobile phone remote
Meterial: BS enclosure
Y20QCloud access control using ABS material appearance design, is a networked two-dimensional code cloud access control products, the product supports ID / IC card door opening, Bluetooth door opening, network door opening, WeChat door opening, two-dimensional code door opening and other ways, convenient for users to flexibly choose.
FOB Price: 64
Brand: Fondvision
Min. Order: 1

1. Product Introduction
Y20QCloud access control using ABS material appearance design, is a networked two-dimensional code cloud access control products, the product supports ID / IC card door opening, Bluetooth door opening, network door opening, WeChat door opening, two-dimensional code door opening and other ways, convenient for users to flexibly choose.

2. Product characteristics

  • Acrylic panel, scratch-proof and anti-rubbing, small size, simple and convenient operation

  • Comes with a dynamic two-dimensional code identification area, sweep the door to open, convenient and fast

  • The storage capacity is large, up to 15,000 card times, and the door opening record reaches 13,000 times

  • The product can be customized, can be developed for secondary development, and provide detailed technical support and guidance

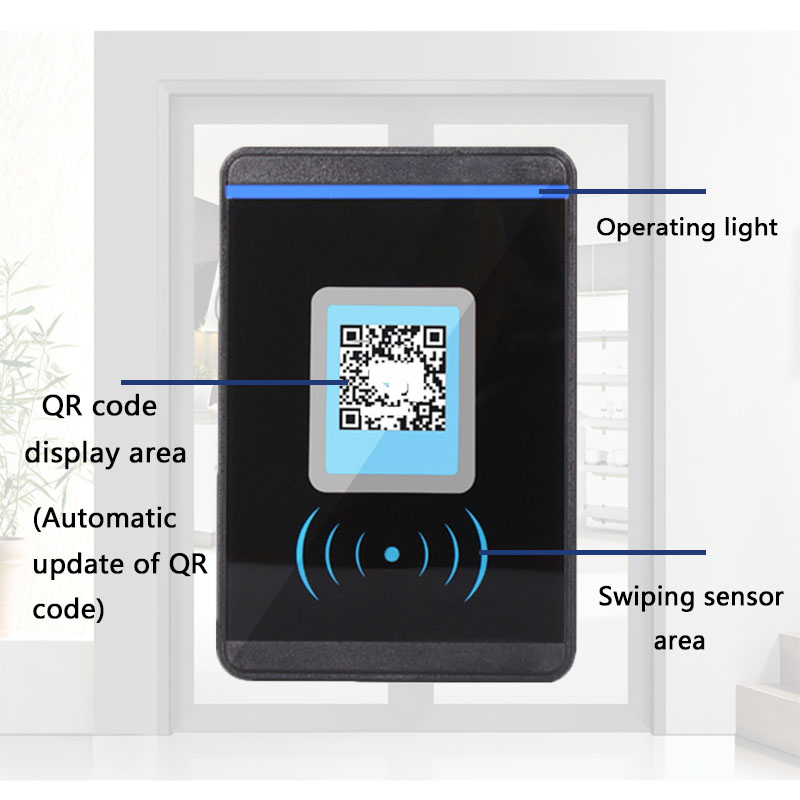

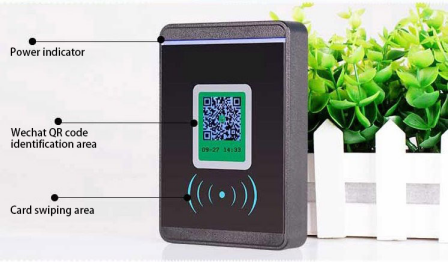

3. Product appearance map


4. Description of power supply and data interface cable line

Line sequence number

Interface definition

illustrate

Line color

1

VCC(+)

DC9~12V power supply

red

2

GND(-)

ground

black

3

NC

Normally closed

ash

4

COM

Public side

blue

5

NO

Always on

palm tree

5. Data interface connection


6. Product specifications

Parameter category

Parameter name

The parameter value



Product features

Light

Blue-green LED

Swipe distance

0-5cm

Way to open the door

Mobile APP, WeChat door opener, ID/IC card, QR code open door

Read speed

<200ms

The card number stores the value

15000 pieces

Networking mode

2G/4G

Unlock type

Relay output

Cloud platform

Cloud backup, cloud storage, cloud management

Appearance

with wrap

Dimensions

112×75×21mm

List of packaging parts

(Y20Q, manual, 5P line) ×1

Net weight

145±5g

panel

Acrylic panel

Material

ABS enclosure

Exterior color

black

Electrical parameters

Operating voltage

912VDC±10%

Operating current

100mA

power consumption

200mw

Work environment

Operating humidity

5%-90%

Operating temperature

-20~70

8.Open a new world with one click



_ueditor_page_break_tag_

9.Application

This product is widely used in office buildings, offices, smart buildings, public passages, finance, educational institutions, properties, smart hotels and other fields
