High Scan Speed Qr Code Reader 2D Barcode Access Reader Wiegand 26/34, RS232, RS485

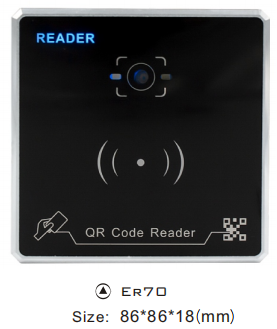

Products Mode: ER70
Place of Origin: Chia
Material: Metal
Width: 86*86*18mm
Application: Access control systems
Weight: 0.2Kg
Colors: Silver
Certification: CE
QR Code Access Card Reader is our new intelligent Access Card Reader, Fast reading speed, High recognition rate, Strong compatibility, can connect to any Wiegand input controller, widely used at Office access management, Tourism management, Community visitor access management, Administration Service Hall management, Gates access control, Visitors intelligent machines, Smart home; Upgrade old access control systems etc.
Port: Shenzhen
Brand: Ework

High Scan Speed Qr Code Reader 2D Barcode Access Reader Wiegand 26/34,RS232,RS485

Parameter

Size(L*W*H)86*86*18mm
MaterialCase:PC  Identify panel:tempered glass
InterfaceWiegand26,34 ,RS485,RS232,USB,TCP/IP optional
Decoding supportQR code,one dimensional code
VoltageSupport 4-15V Wide voltage input
Current800mA
Reading directionsCamera centric slant 45°
Reading speed<200ms
Reading range0-20CM
Reading featureauto-induction, beep hint
Light sourceWith LED light source itself,anti-highlight interference
Decode ModeImage decoding
Application environmentTemperature:-20~70ºC Humidity:10%~90%
Operate systemWindows(xp 7 8 10),Linux
Indicating status lightRed-Work,Green-Feedback,Light Green-Internet
Reading range3-6CM
Reading card typeEM or Mifare card


Features:
1.DC 12V 1000MA
2.EM card or Mifare Card for choose
3.Identify paper or screen QR Code
4.Support 26/34 weigand output to third party Access Control system
5. RS232RS485,USB virtual keyboardUSB virtual Serial portHTTP outputMQTT output optional

Identify QR code Size:80-100mm
