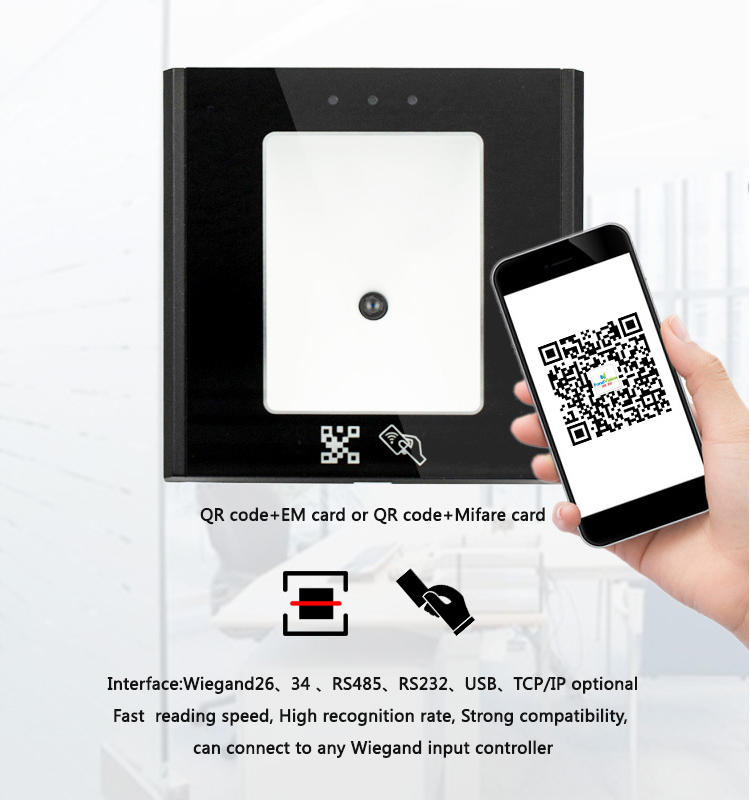

QR Code EM/MF RFID Reader Access Control

Products Mode: ER80

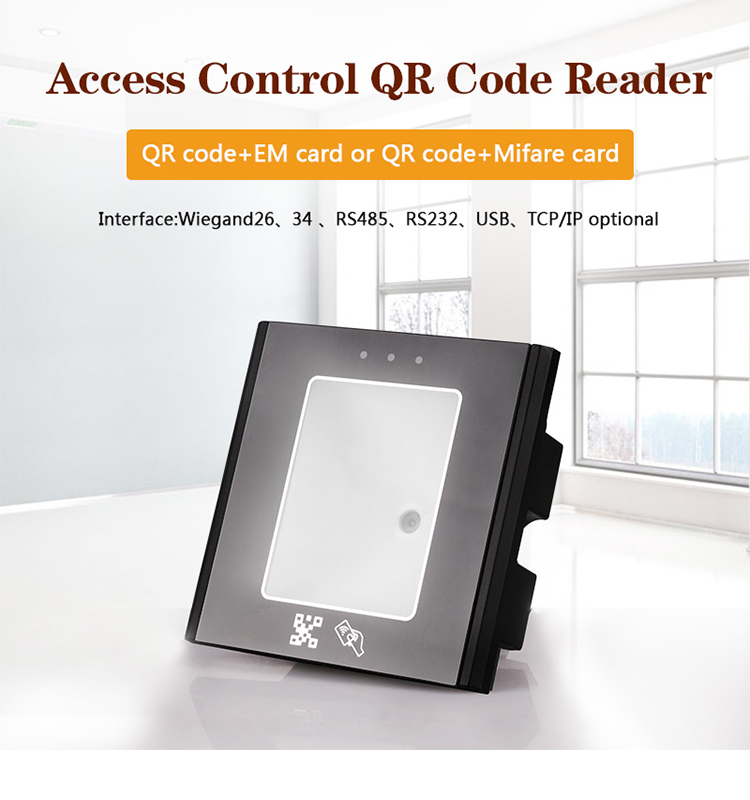

Wiegand,RS232,RS485,RJ45,USB QR Code RFID Reader Access Control QR Code Scanner

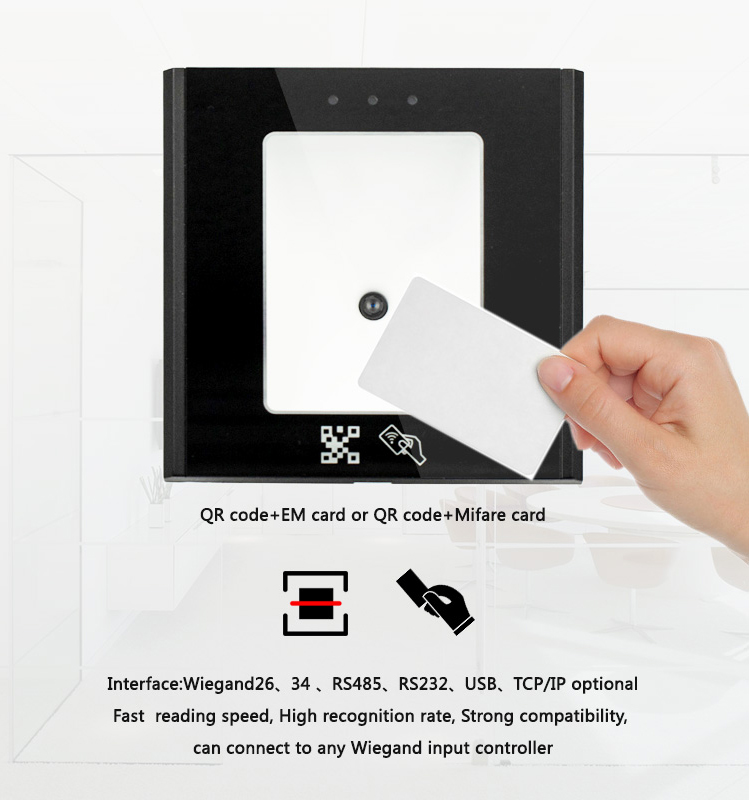

QR Code RFID Card Reader Access Control


Reader Technical Parameter

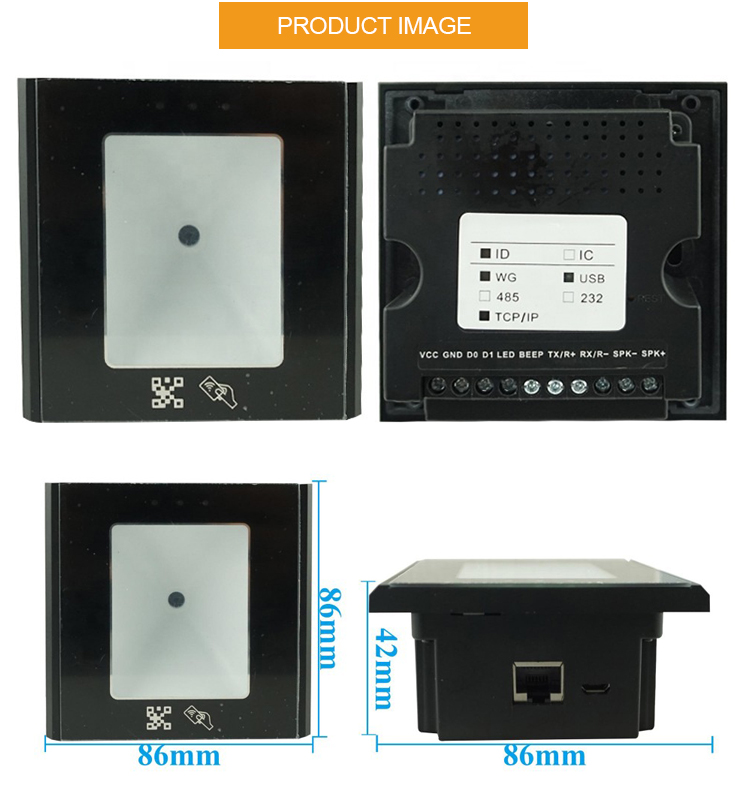

Size(L*W*H)

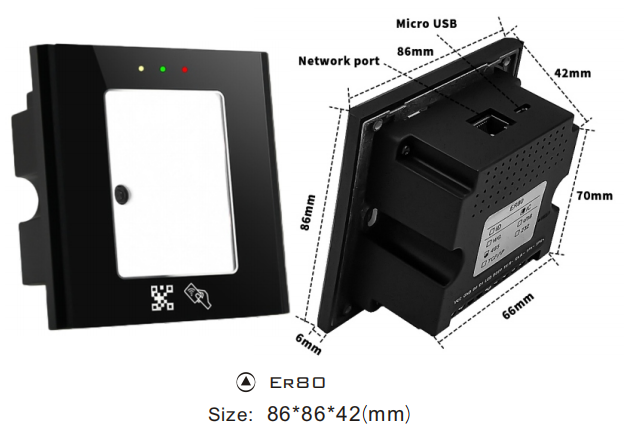

86*86*42mm

Material

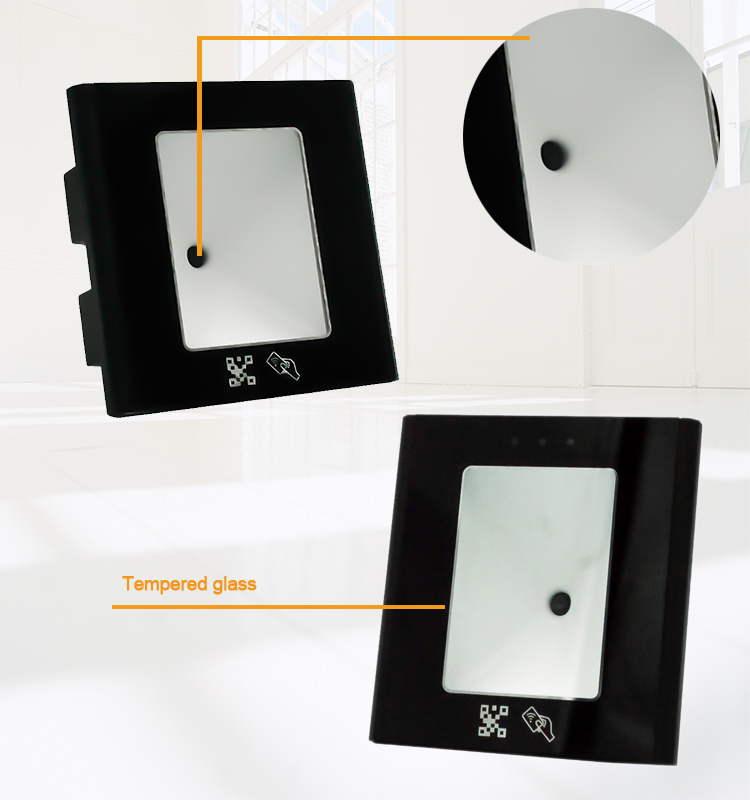

Case:PC identify panel:tempered glass

Interface

Wiegand26、34 、RS485、RS232、USB、TCP/IP optional

Decoding support

QR、one dimensional code

Voltage

Support 4-15V Wide voltage input

Current

800mA

Reading directions

Camera centric slant 45°

Reading speed

<200ms

Reading range

0-20CM

Reading feature

auto-induction, beep hint

Light source

With LED light source itself,anti-highlight interference

Decode Mode

Image decoding

Application environment

Temperature:-20~70℃ Humidity:10%~90%

Operate system

Windows(xp 7 8 10)、Linux

Indicating status light

Red-Work、Green-Feedback、Light Green-Internet

Reading range

3-6CM

Reading card type

EM or Mifare card



Restore  Factory Settings: Use sharp objects inserted into REST hole of QR code reader  backside, release till the QR code reader automatically restart.

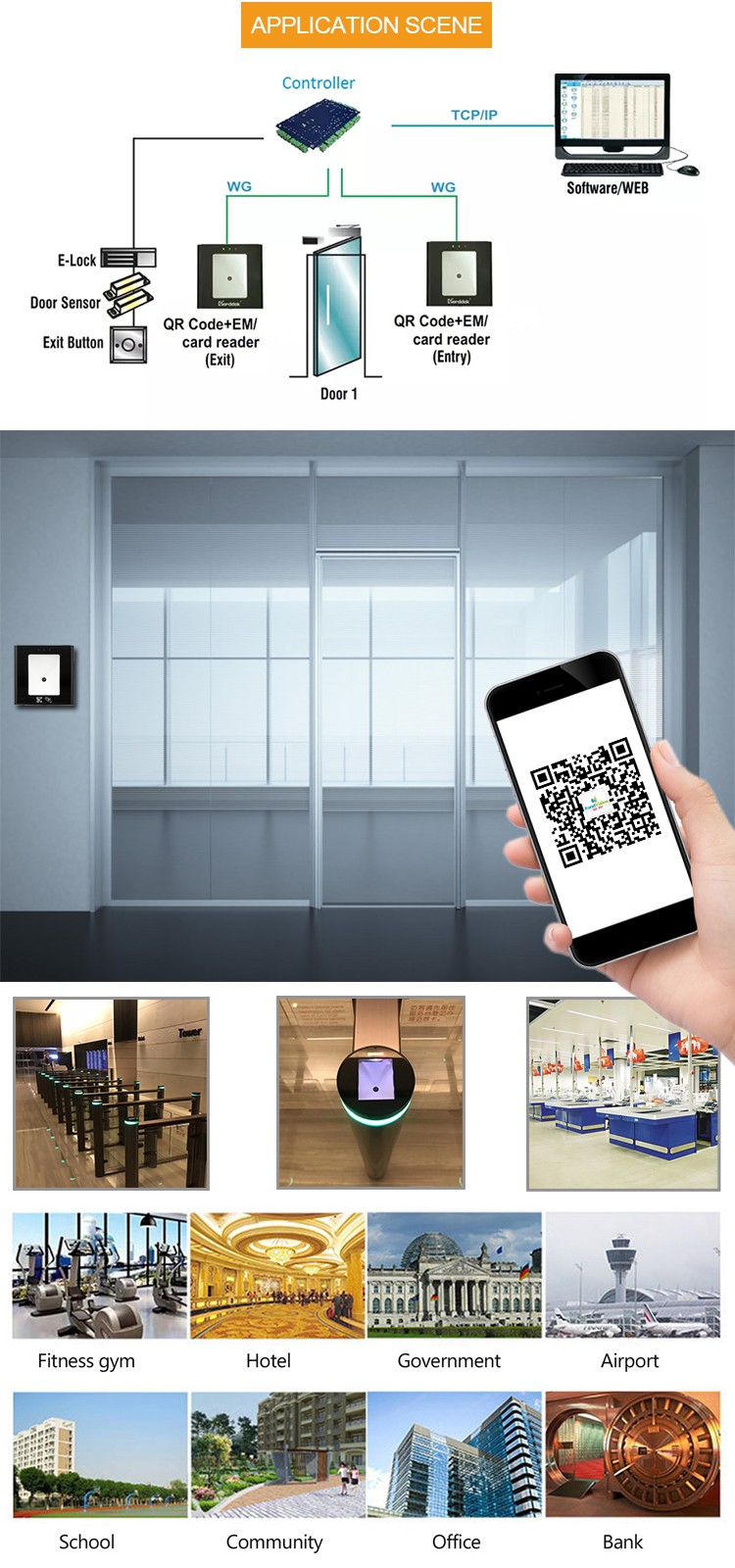

Features:

1.DC 12V 1000MA

2.EM card or Mifare Card for choose

3.Identify paper or screen QR Code

4.Support 26/34 weigand output to third party Access Control system

5. RS232, RS485,USB virtual keyboard, USB virtual Serial port, HTTP output, MQTT output optional

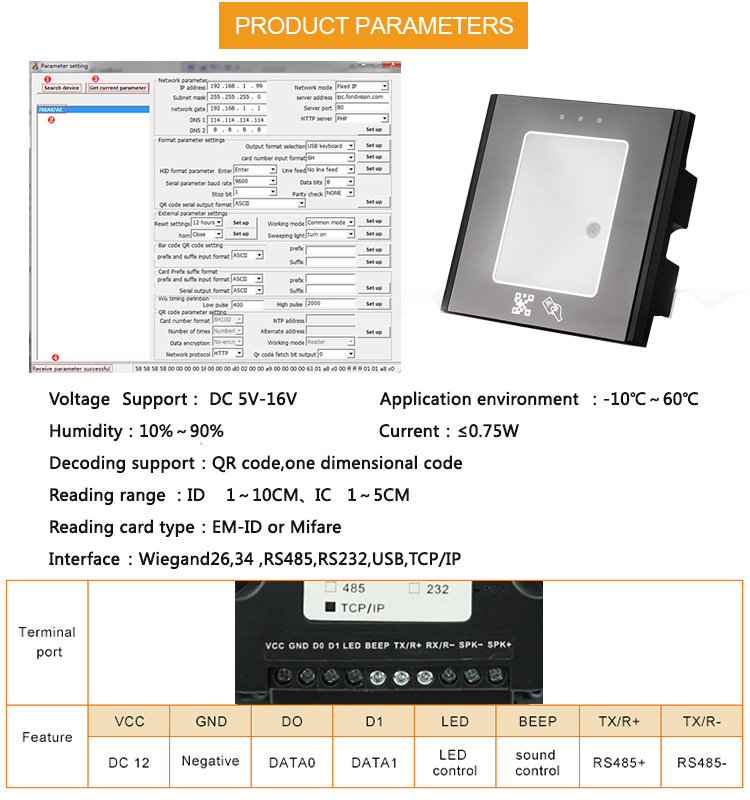

Wire connection:

VCC:DC12;    GND:DC12;D0:DATA0;D1:DATA1; LED:LED indicate; BEEP:Sound ;

TX/R+:RS232+/RS485+;

RX/R-:RS232-/RS485-;

SPK-、SPK+:not define;

RJ45:connect to network, PC software setting reader parameter;apply to HTTP mode

micro-USB:For USB virtual keyboard and USB virtual serial port mode communication.

mes New Roman';mso-fareast-font-family:Arial;font-size:12.0000pt;" >HTTP output, MQTT output optional

Note:

1.do not connect the power to the SPK+ and SPK- ports;

2.Wiegand output, QR code shall comply with the principle of combination of 1hexadecimal number 0~F, the QR code in accordance with this principle, controller can receive the card data; QR code not in accordance with this principle, the controller can not receive the card data;

3.Wiegand output, default QR code output is decimal number.

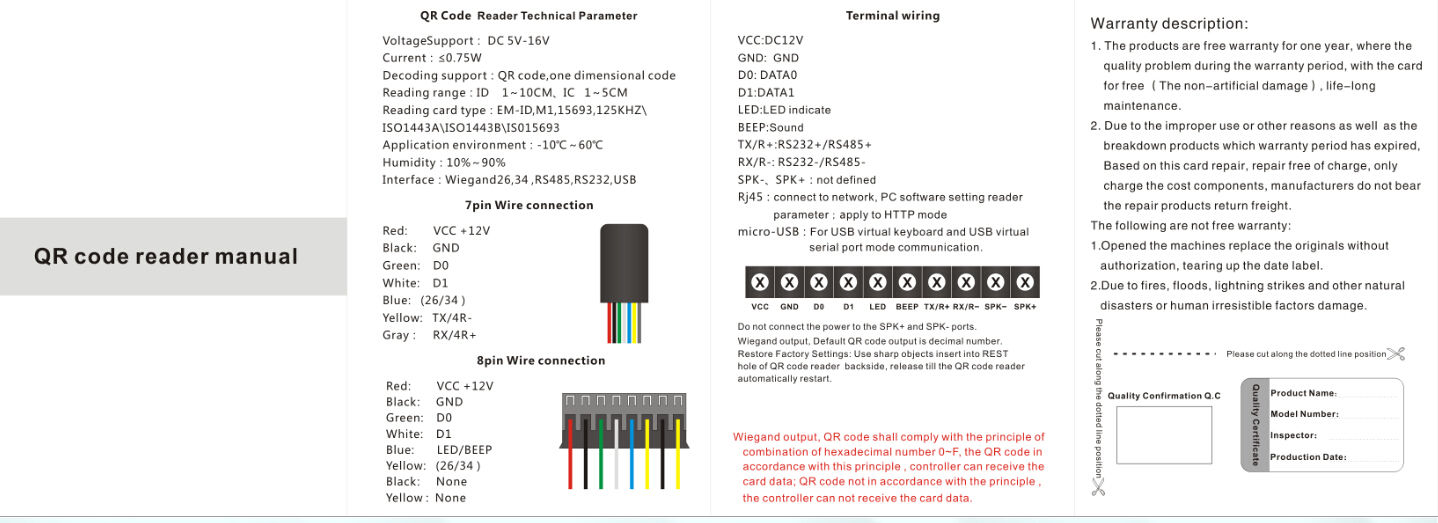

QR code reader manual.png
