Wiegand 26/34/TTL/USB Embedded QR Code Scanner 2D Barcode Reader Scanner

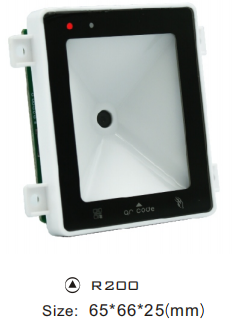

Products Mode: R200
Wiegand 26/34/TTL/USB Embedded QR Code Scanner 2D Barcode Reader Scanner

Wiegand 26/34/TTL/USB Embedded QR Code Scanner 2D Barcode Reader Scanner

     NEW embedded two-dimensional image module, using advanced CMOS image,recognition technology, intelligent image recognition system. With excellent reading performance, can easily read paper, goods, screen and other media on the bar code. The integrated compact design can be easily embedded into all kinds of devices. It can be widely used in all kinds of self-service machines, price checking machines, access control channels and other scenarios.


Features:
1. CMOS image sensor,read 2D barcodes.
2. No driver, plug and play.
3. Supporting the WG26/34 and USB, TTL, interface.
4. Wide angle lens design, scans a large area.
5. Super scanning and decoding ability, can read incomplete and fuzzy codes.
6.Scanner reads 2D QR code printed on labels or displayed on device screens.
7. Mini size and lightweight easy to be integrated into various solutions such as kiosks, flow line,medical equipment,ticketing machines,vending machines, and many more.
8. Can be customized according to customer demand.


Technical Parameter

ParameterParameter value
Scan window materialHD tempered glass
Fill-in lightLED white induction light, anti strong light interference, can be set to turn on and off
Decoding recognition accuracy≥10mil
SymbologiesQR code
Decoding modeImage based decoding engine
QR code size8~100 mm
Card typeMF card
Scan RangeMF card:1~5cm, QR code:1~20cm
Image SensorCMOS
scan resolution640*480 pixels
QR code typePrinted on labels or displayed on device screens
Scan speed<200ms
Scanning featureautomatic
InterfaceWiegand26, wiegand34,TTL,USB
Scan modeAuto trigger
Prompt modeBuzzer, LED indication
Size65×66×25mm(with ear)
Scan windows size37.5×47.5 mm
NW40g
ColorWhite
Working voltage9~12VDC±10%
Working current200mA±5%
Standby mode 31-51mA
Power waste250mw
Relative humidity5%-90%
Working temperature-20~70ºC

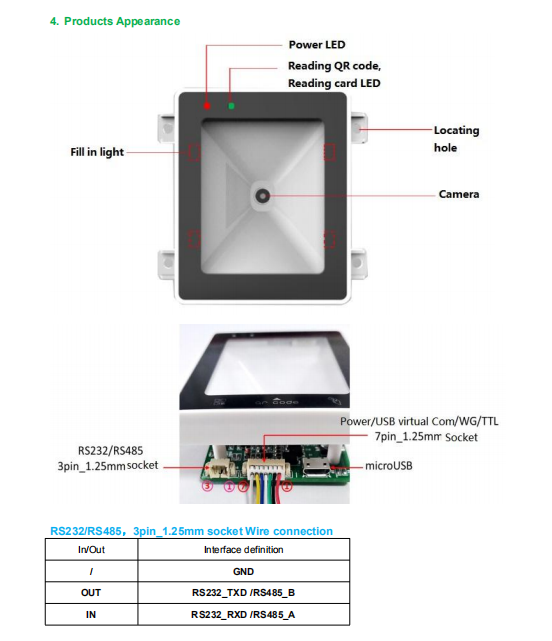

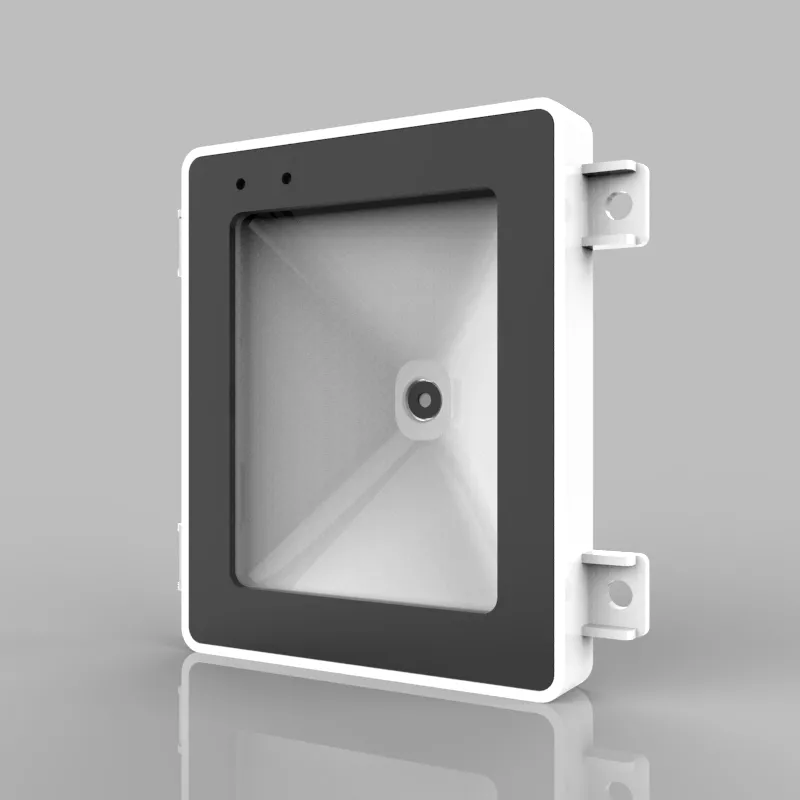

Product image
