Single door standalone access control

Products Mode: k32

The unit is single door multifunction standalone access controller or a wiegand output keypad card reader ,It is housed in astrong,sturdy and vandal proof zinc alloy electronics area fully potted so the unit is waterpfoof and conforms to IP68.  This unitsupports up to 2000 users in either a card,4 digit PIN,or acard +PIN option.  The inbuilt card reader supports 125khz EM cards,13.56mhz mifare cards. The unit has many extra features including lock output current short circuit protection,wiegand output,and a backlit keypad. These feaures make the unit an ideal choice for door access not only for small shops and domestic households but also for commercial and industrial applications such as factories,warehouses,laboratories ,banks and prisons

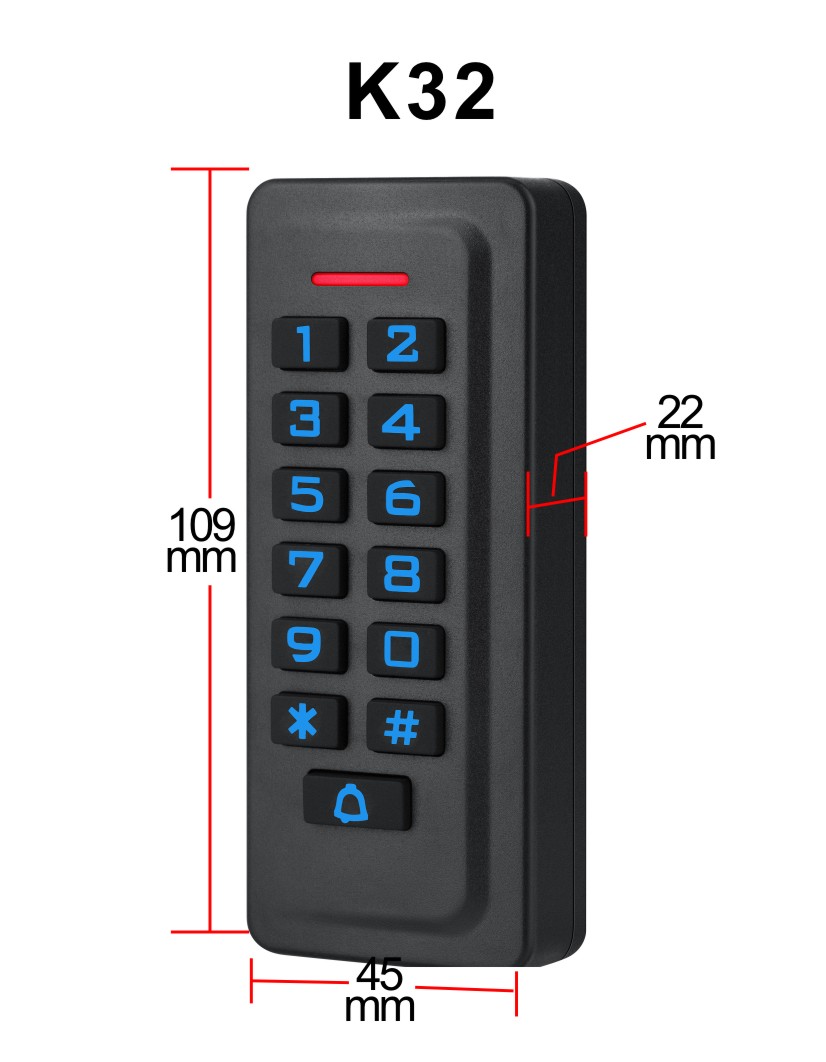

K32 size.jpg

*Waterproof,conforms to IP68(Can be selected)

*Full programming from the keypad

*2000 users,supports Card,PIN,Card+PIN

*Can be used as astandalone keypad

*Backlighe keys

*Wiegand26 input for connection to external reader

*Wiegand26 output for connection to a controller

*Adjustable Alarm time and Door open time

*Very low power consumption(30mA)

*Fast operating speed,<20ms with 2000 users

*Lock output current short circuit protection

*Easy to install and program

*Built in light dependent reasistor (LDR)for anti tamper

*Built in buzzer

*Red,Yellow and Green LEDS display the working status
