TUYA APP Fingerprint Door Access Controller

Products Mode: TF3
Material: Aluminum,ABS,MDF
Size: Custom Size
Colors: Black, Silver, Customized
Corner: Metal corner / Plastic corner
Handle: Metal Handle / Plastic Handle
Lining: EVA / Fabric /Nylon/ Velvet
Term: FOB CIF
Port: Ningbo, Shanghai
Min. Order: 50 Pieces
Delivery: 30 days after confirmation
Supply Ability: 50000 Piece/Pieces per Month
Payment: 30% Deposit by T/T and the balance before shipment or against the copy B/L
Shipping: EMS, FedEx, DHL, UPS, By Air & By Sea

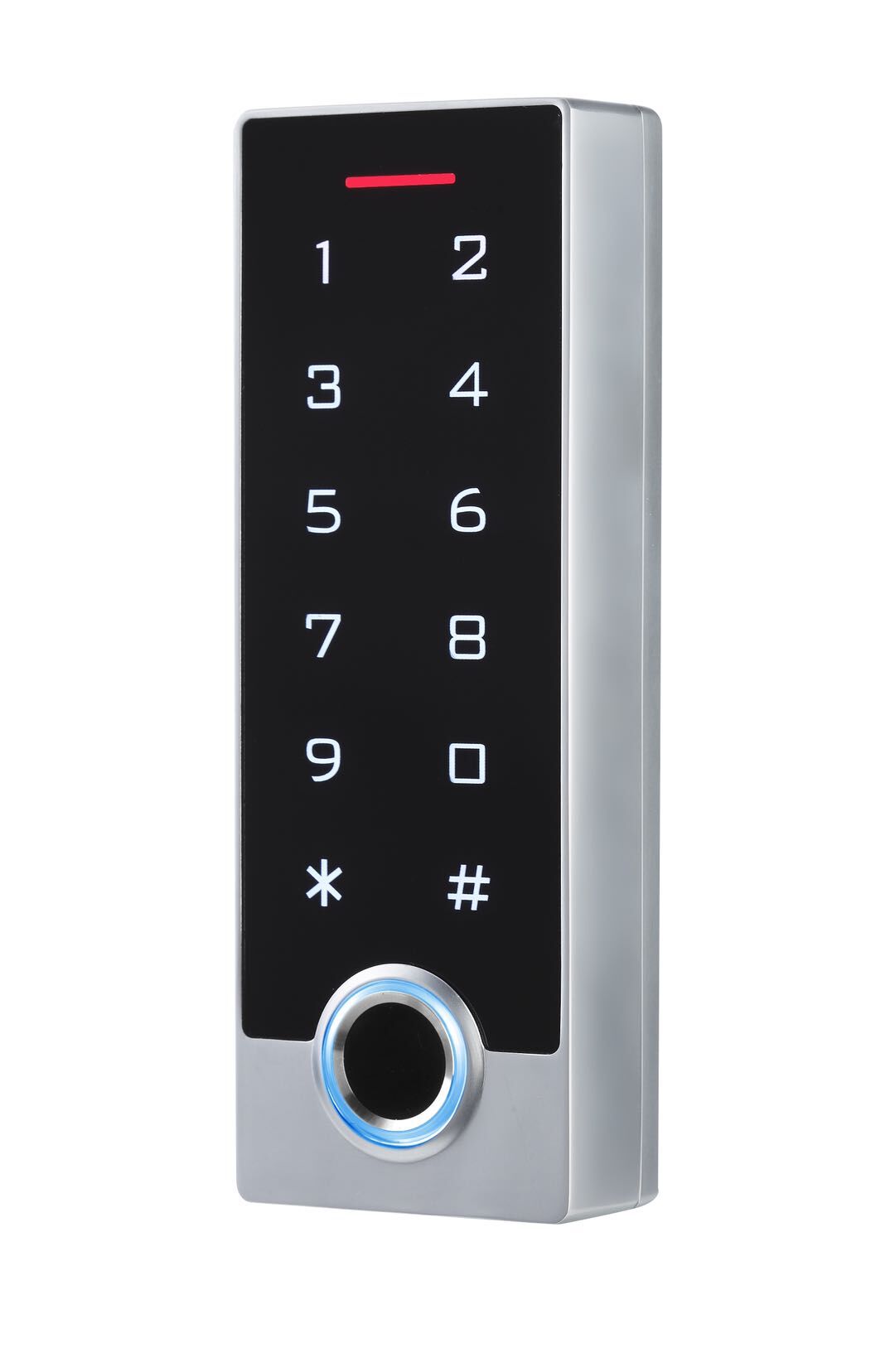

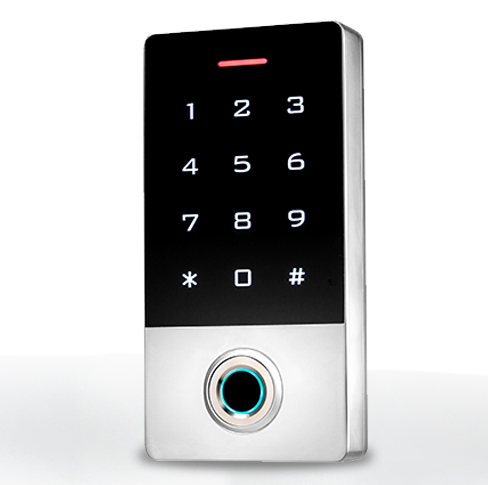

Metal & IP68 Waterproof Fingerprint Standalone Access Controller
Multi-function standalone access control.
It adopts a new ARM core 32-bit microprocessor design, which is powerful, stable, and reliable.
It includes card reader mode and standalone access control mode etc..
Its widely applied to different occasions, such as offices, residential communities, villa, bank, and prison, etc.


Read 125KHz EM / 13.56MHz Mifare(Factory default: EM 125KHz)

Metal backlight keypad
Contains card reader mode. The transmission format could be adjusted by user.
Supports different access ways: Entry by Card + Code or Entry by multi cards
Support master added card and deleted card
User capacity: 10,000 users



Product Parameter

Parameter Description

Product Name

Metal Fingerprint Access Control

Card type

EM is standard/ Mifare for Optional

User Capacity

10,000 users

Fingerprint Capacity

300

Keypad Characteristic

Metal backlight keypad

Operating Voltage

DC 12-24V

Standby Current

<=35ma

Operating Current

<=100ma

Operating Temperature

-40℃ ~ 60℃

Operating Humidity

0%~95%

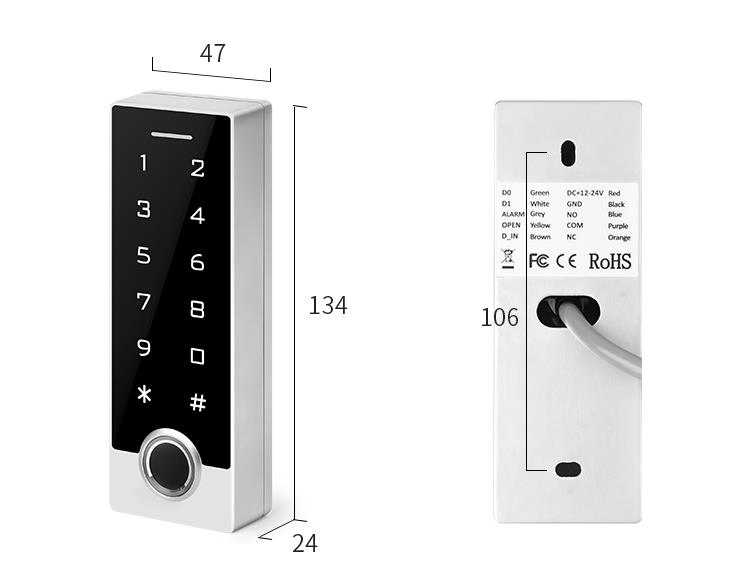

Dimensions

135*47*23mm

Access ways

Fingerprint, card, code, or multiple

combination methods
