2. Features
Ø Read 125KHz EM Card and HID Card (Optional)
Ø Read 13.56MHz Mifare card and CPU card (Optional)

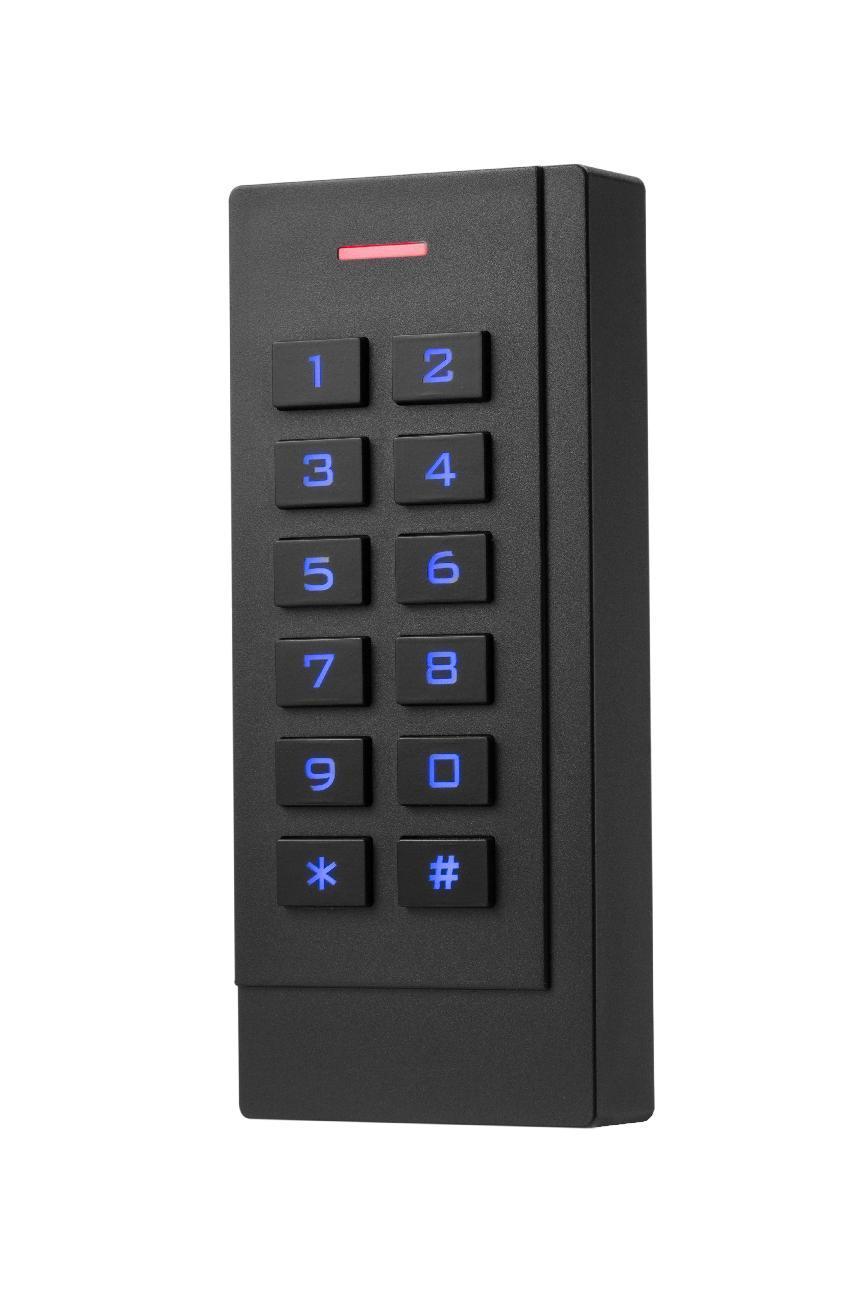

Ø Metal backlight keypad
Ø Contain reader mode, the transmission format could be adjusted by user.
Ø Support card plus code, multi cards access ways.
Ø Support admin add card and admin delete card
Ø 10,000 card users.
3. Technical Specifications
Ø Operating Voltage: DC 12-24V
Ø Standby Current: ≤35mA
Ø Operating Current: ≤100mA
Ø Operating Temperature: -40℃~60℃
Ø Operating Humidity: 0%~95%
Ø Access ways: Card, code, or multiple combination methods, mobile APP
No. | Color | Marks | Description |
1 | Green | D0 | Wiegand input (Wiegand output as reader mode) |
2 | White | D1 | Wiegand input (Wiegand output as reader mode) |
3 | Yellow | OPEN/ BEEP | Exit button input end (Beeper input as reader mode) |
4 | Red | +12V | Positive power supply or AC power supply end |
5 | Black | GND | Negative power supply end |
6 | Blue | NO | Relay NO end |
7 | Purple | COM | Relay COM end |
8 | Orange | NC | Relay NC end |
9 | Pink | BELL_A | Doorbell one end(optional) |
10 | Pink | BELL_B | Doorbell the other end(optional) |
