Waterproof Wiegand26/34 RS232 USB Desktop Barcode Scanner RFID Smart Card Reader Access Control

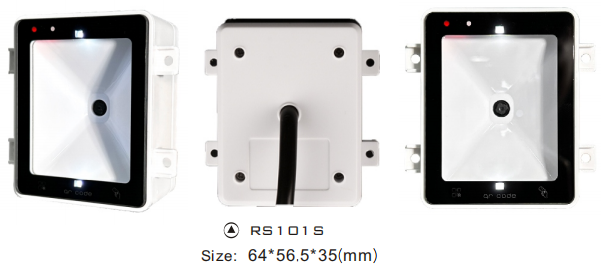

Products Mode: R101S
Waterproof Mini Embedded Module Wiegand26/34 RS232 USB Desktop Barcode Scanner RFID Smart Card Reader Access Control
Term: FOB CIF
Port: Shenzhen
Supply Ability: 50000 Piece/Pieces per Month
Shipping: EMS, FedEx, DHL, UPS, By Air & By Sea

Waterproof Wiegand26/34 RS232 USB Desktop Barcode Scanner RFID Smart Card Reader Access Control

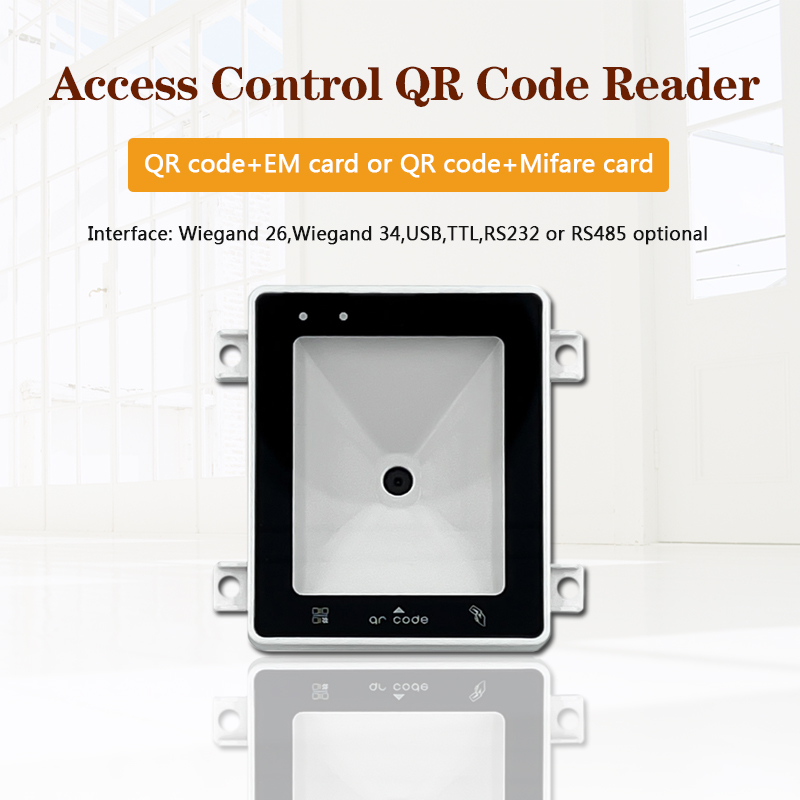

Vending Machine Kiosk QR Barcode Scanner 2D Mini Embedded Module QR Code USB Barcode Reader Access Control QR Wiegand26/34,RS232,RS485,USB,TTL QR Barcode Scanner Access Control Reader Module

  • Product performance description

Intelligent device with high integration and excellent performance, which integrates embedded QR code scanning,Barcode
and card swiping. It adopts advanced CMOS image recognition technology and intelligent image recognition system, high code
scanning recognition rate, fast speed, sensitive card swiping response, strong compatibility, integrated and compact design, and

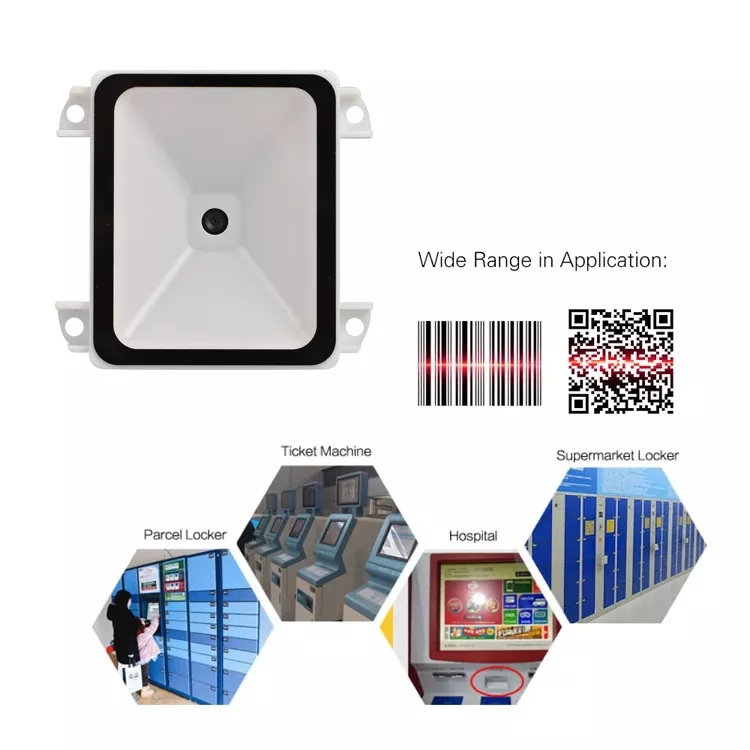

can be easily embedded into all kinds of equipment. It can be used in the fields of QR code scanning recognition, IC card reading,

Paremeter type

Parameter name

Parameter value

Products Features

Fill-in light

With LED light, induction light, anti strong light interference

Image sensor

CMOS

Camera pixel

300000 pixels

Scan resolution

640*480

Symbologies

QR Code

Decoding mode

Image based decoding engine

Decoding recognition accuracy

≥10mil

QR code size

8~100 mm

Reading range

1~20cm

Reading angle

Rotate 360 °, tilt ± 45 °, deflection ± 45 °

Scan mode

Automatic induction, instant wake-up

QR code type

displayed on device screens,paper, metal, plastic code, etc

Reading speed

<200ms

Card Type

Mifare Card

Reading card range

MF 1~5cm

Interface

1.USB virtual serial port /WG/TTL Factory default

2.USB virtual serial port /WG/232/TTL RS232 Optional

3.USB virtual serial port /WG/485/TTL RS485 Optional

Prompt mode

Buzzer sound, red work light on, green feedback light flashes

Appearance and
packing

Size

65×66×25mm(with Locatibng hole)

Scan window size

37.5×47.5 mm

Scan window material

HD tempered glass

Packing parts list

(QR code reader module,manual,3P wire,7Pwire)×1

NW

40g

Color

White

Electrical parameters

Work voltage

5~12VDC±10%

Work current

5V 104mA±5%
12V 50mA±5%

Stand by Current

5V 92mA±5%
12V 40mA±5%

Power Consumption

0.52W

Working environment

Working humidity

5%-90%

Working temperature

-20~70℃
